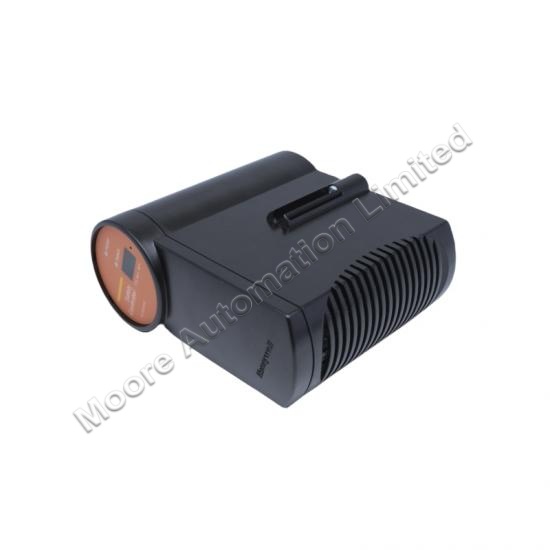

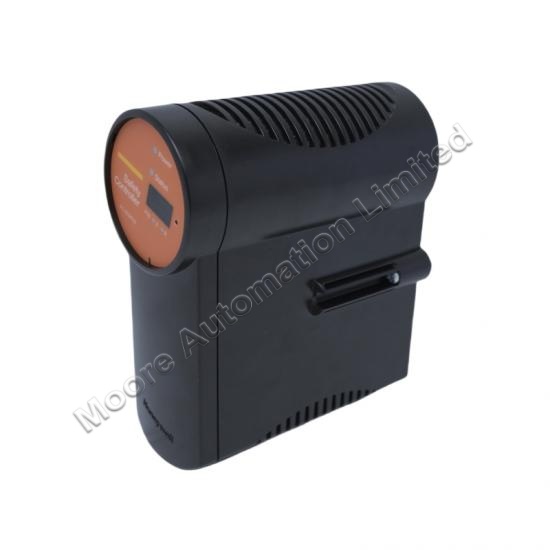

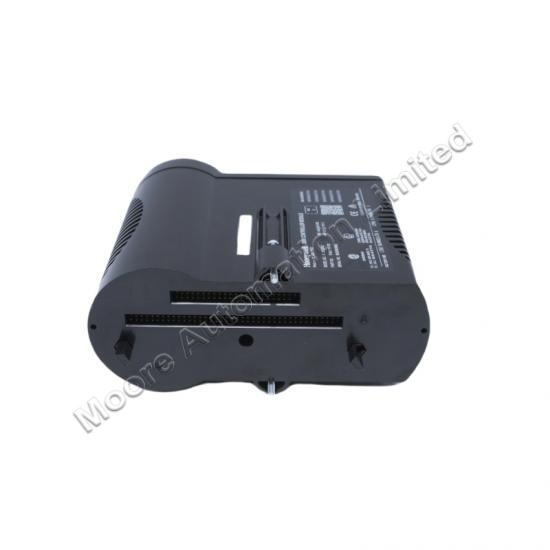

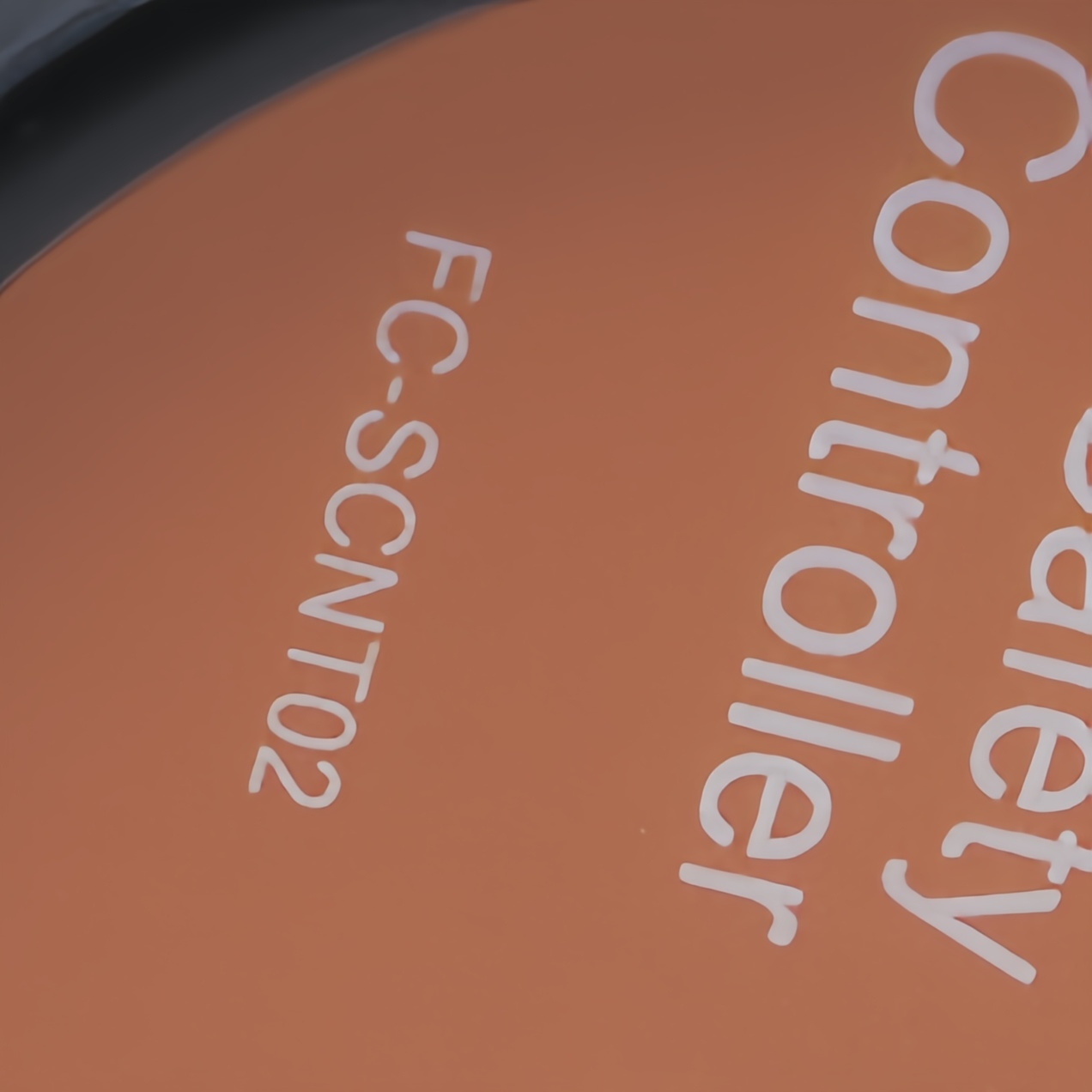

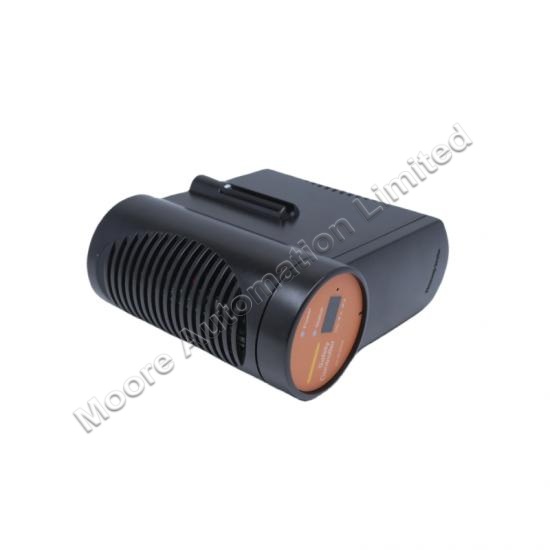

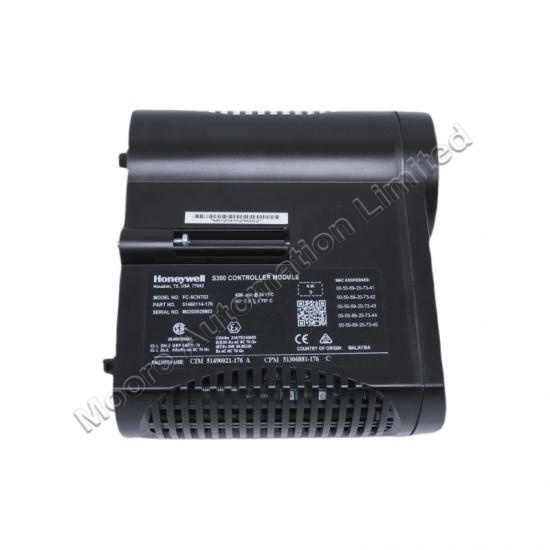

HONEYWELL FC-SCNT02 51454926-176 Controller Module

What is the ABB PM554-RP Processor Module? The ABB PM554-RP 1SAP120700R0001 Processor Module is a compact and versatile component designed for industrial automation. Part of the AC500 series, this programmable logic controller (PLC) offers exceptional performance with a robust design tailored for demanding applications. Featuring user-friendly programming capabilities and reliable I/O terminals, the PM554-RP is a preferred choice for engineers and automation professionals worldwide. Key Specifications of the ABB PM554-RP Processor Module The ABB PM554-RP Processor Module boasts impressive technical specifications that make it stand out in the field of industrial automation. Below are the key highlights: Processor Module: Designed with 128 kB memory for efficient processing and operation. I/O Configuration: Features 8 digital inputs (DI) and 6 relay digital outputs (DO-R) for versatile connectivity. Voltage Support: Operates at a rated voltage of 24 V DC, with a supply voltage range of 20.4 to 28.8 V DC. Memory Type and Size: Equipped with 142 kB RAM, ensuring smooth handling of user data. Controller Speed: Exceptional processing time of 0.00008 ms, delivering fast and accurate responses. Pluggable I/O Terminal Blocks: Simplifies wiring and enhances usability during installation and maintenance. Dimensions and Weight of the ABB PM554-RP The compact and lightweight design of the ABB PM554-RP makes it suitable for space-constrained applications. Its dimensions and weight are as follows: Net Weight: 0.298 kg Net Depth / Length: 74 mm Net Height: 135 mm Net Width: 82 mm Gross Weight: 0.457 kg This compact design allows for easy integration into control cabinets and automation systems without occupying excessive space. Applications of the ABB PM554-RP Processor Module The ABB PM554-RP is a versatile processor module suited for a wide range of industrial automation applications, including: Manufacturing Systems: Ensures seamless operation of automated production lines. Building Automation: Controls HVAC systems, lighting, and other essential building functions. Energy Management: Helps optimize energy usage in industrial settings by managing equipment operation efficiently. Water and Wastewater Treatment: Plays a critical role in monitoring and controlling pumps, valves, and other components. With its flexibility and reliability, the PM554-RP is ideal for both small and large-scale automation projects. Benefits of Using the ABB PM554-RP The PM554-RP Processor Module offers several advantages that make it a valuable addition to any automation setup: High Performance: The ultra-fast processing time ensures smooth and efficient operations. User-Friendly Design: Pluggable I/O terminal blocks simplify wiring and maintenance. Compact Build: Space-saving dimensions allow for easy integration into existing systems. Reliable Power Range: Operates seamlessly within a wide voltage range, ensuring stability. Versatility: Suited for diverse applications across vario...

Introduction to the YOKOGAWA VI702 Vnet/IP Interface Card When it comes to industrial networking, the YOKOGAWA VI702 Vnet/IP Interface Card is a key solution for connecting your PC to the Vnet/IP network. This interface card offers seamless integration for real-time communication, ensuring efficient data exchange between systems. Designed to be installed in a PCI Express slot, the card bridges the gap between your computer and the Vnet/IP network, providing a reliable communication pathway for industrial automation systems Key Features and Specifications of the YOKOGAWA VI702 The VI702 Vnet/IP Interface Card supports high-speed communication, ensuring minimal latency in data transfer. Some key specifications to note include: Communication Speed: The interface card offers a full-duplex communication speed of 1 Gbps, allowing for rapid data transmission. Connection Specifications: The card uses CAT5e (Enhanced Category 5) cables with UTP (Unshielded Twisted Pair) wiring for efficient data transfer. The 1000BASE-T compliance ensures that the connection remains stable, even at high speeds. Connector and Max Distance: Equipped with an RJ45 connector, the card supports a maximum distance of 100 meters when connected to a Layer 2 switch. Installation Requirements for the VI702 Vnet/IP Interface Card To successfully install the YOKOGAWA VI702 card, ensure the following: PCI Express Slot Compatibility: The card is designed for use in PCI Express slots (x1 to x16), and is not compatible with traditional PCI slots. Power Requirements: The card requires a 3.3V power supply, with a maximum current consumption of 2.5A, so your system must be capable of providing adequate power. Technical Specifications of the YOKOGAWA VI702 Understanding the detailed specifications can help ensure compatibility and proper installation: Communication Speed: Full-duplex 1 Gbps communication ensures fast and reliable data transmission. Maximum Distance: The maximum allowable distance between the interface card and the Layer 2 switch is 100 meters, ensuring flexibility in your network design. Voltage and Power Consumption: The card operates on a 3.3 V ±9% power supply and consumes a maximum of 2.5 A of current. Application and Benefits in Industrial Networks The YOKOGAWA VI702 Vnet/IP Interface Card is particularly beneficial in industrial networks that require robust communication between devices. By installing this interface card, you can integrate your PC with a Vnet/IP network, enabling smooth data exchange between controllers, sensors, and other networked devices. This card provides a reliable solution for systems demanding low latency and high throughput, making it an essential component for industrial automation. Conclusion Incorporating the YOKOGAWA VI702 Vnet/IP Interface Card into your industrial network enhances connectivity and communication speed, ensuring that your systems operate efficiently and effectively. With its simple installation in PCI Express slots and robu...

Introduction to the Honeywell 51309276-150 High-Performance I/O Link Card In the realm of industrial automation and control systems, the Honeywell 51309276-150 High-Performance I/O Link Card plays a vital role in streamlining communication between various subsystems. This advanced I/O Link card is specifically designed for use within Honeywell’s High Performance Process Manager (HPM), making it an integral part of enhancing control and monitoring capabilities within complex process systems. Understanding its features, operation, and role within the larger HPM system is crucial for engineers and system operators aiming to maximize system performance and reliability. Key Components and Functionality of the High-Performance I/O Link Card The Honeywell 51309276-150 is not just a simple I/O module. It is a crucial interface between the High-Performance Process Manager and its I/O subsystem, ensuring seamless data flow and communication. The card integrates several essential components that facilitate this functionality: I/O Link Processor: This is the heart of the I/O Link card, handling all communication tasks between the HPM and I/O subsystems. SRAM Memory: The processor uses SRAM to exchange data with the Communications/Control card, providing the necessary buffer for real-time operations. I/O Link Driver/Receiver Interface: This component enables the physical communication between the I/O subsystem and the HPM, ensuring reliable data transmission. Power Converter: A critical feature, the power converter steps down the 24 Vdc input power to 5 Vdc, which is required for the operation of the HPMM cards and the HPM UCN Interface module. The card is designed to support redundant connections and can interface with up to 40 I/O processors (IOPs), ensuring high availability and fault tolerance in critical process environments. Installation and Integration of the High-Performance I/O Link Card The integration of the 51309276-150 I/O Link Card into the High-Performance Process Manager (HPM) is straightforward but requires precision. It is part of a set of HPMM cards that occupy the first two slot positions in a 7-slot or 15-slot card file. These slots are populated as follows: High-Performance Communications/Control Card (51403988-150) High-Performance I/O Link Card (51309276-150) HPM UCN Interface Module (51402573-150) The I/O Link card is positioned to communicate directly with the I/O subsystem and serves as the bridge for data exchange, ensuring optimal operation of the entire HPM system. The card setup and assembly should be done carefully to ensure that each component is installed into the correct slot for maximum efficiency. Indicators and Diagnostics for the High-Performance I/O Link Card Understanding the indicators on the I/O Link card is essential for troubleshooting and maintaining system performance. Several key indicators provide real-time feedback on the system’s status: Power Indicator: The power indicator light up whenever 24 Vdc power is s...

Introduction to the GE Fanuc IC200CPUE05 The GE Fanuc IC200CPUE05 VersaMax controller module is a versatile and powerful solution tailored for modern industrial automation needs. Equipped with advanced features such as configurable user memory, embedded communication ports, and high-speed processing, this module seamlessly integrates into diverse systems, delivering exceptional reliability and efficiency. Whether it's small-scale setups or extensive operations, the IC200CPUE05 offers unmatched performance and flexibility. Key Features of the GE Fanuc IC200CPUE05 The IC200CPUE05 VersaMax controller module is designed to meet the most demanding industrial requirements with the following standout features: Configurable User Memory: Offers 64 KB of memory for custom applications, ensuring adaptability across various operations. Embedded Communication Ports: Includes three communication ports—RS-232, RS-485, and Ethernet—for seamless device connectivity and data exchange. Super Capacitor for Memory Backup: Retains critical data during power outages for up to an hour. Floating Point Data Processing: Facilitates complex calculations, making the module ideal for intricate applications. Run/Stop Switch and Status LEDs: Simplifies operations and monitoring with user-friendly controls and visual status indicators. Technical Specifications The IC200CPUE05 is engineered for peak performance, with technical specifications that set it apart in the market: Dimensions: Compact size of 126 x 128 x 69.1 mm (W x H x D). Power Requirements: Operates on 5V at 220mA and 3.3V at 570mA. Boolean Execution Speed: Processes Boolean logic at a rapid 0.8 ms/K. Real-Time Clock Accuracy: Ensures precise timekeeping with an accuracy of 100 ppm (±9 seconds/day). Ethernet Data Rate: Delivers data at 10 Mbps with full- or half-duplex modes. EGD Configuration: Supports up to 32 Ethernet Global Data (EGD) exchanges with 1400 bytes per exchange. Communication Capabilities The IC200CPUE05 excels in its communication features, providing seamless integration into distributed systems: SRTP Server Connections: Manages up to 8 simultaneous connections for smooth system operation. Time Synchronization: Utilizes Network Time Protocol (NTP) for accurate system-wide timekeeping. EGD Configuration: Enables easy loading of EGD settings from the PLC to the programmer. Remote and Local Management: Allows remote station management over UDP and local control via RS-232. Applications of the GE Fanuc IC200CPUE05 The IC200CPUE05 VersaMax controller module is a versatile solution for a variety of industrial automation needs: Factory Automation: Ideal for systems that require rapid Boolean logic execution. Distributed Control Systems: Supports extensive I/O modules, making it perfect for large-scale operations. Complex Applications: Suitable for environments needing precise time synchronization and floating-point data processing. Conclusion The GE Fanuc IC200CPUE05 VersaMax controller module is a game-cha...
