Bently Nevada 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes

330103-00-15-05-01-00
330103-00-15-05-01-00
330103-00-15-05-01-00
330103-00-15-05-01-00
330103-00-15-05-01-00

Bently Nevada 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probes

Same Day Shipping for Stock Items

DHL / Fedex / UPS / Aramex

Professional one-on-one service

100% brand new and original

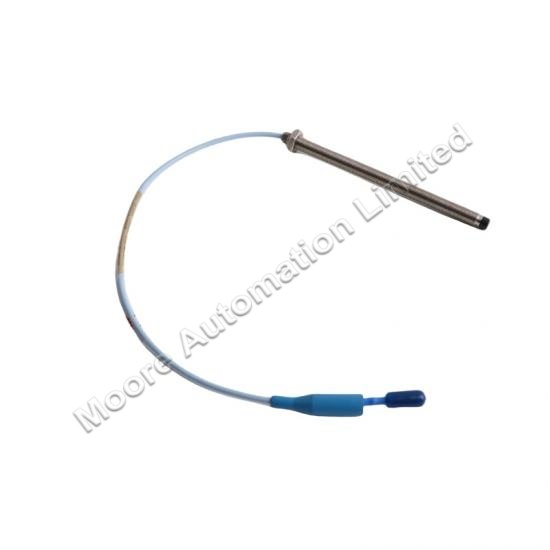

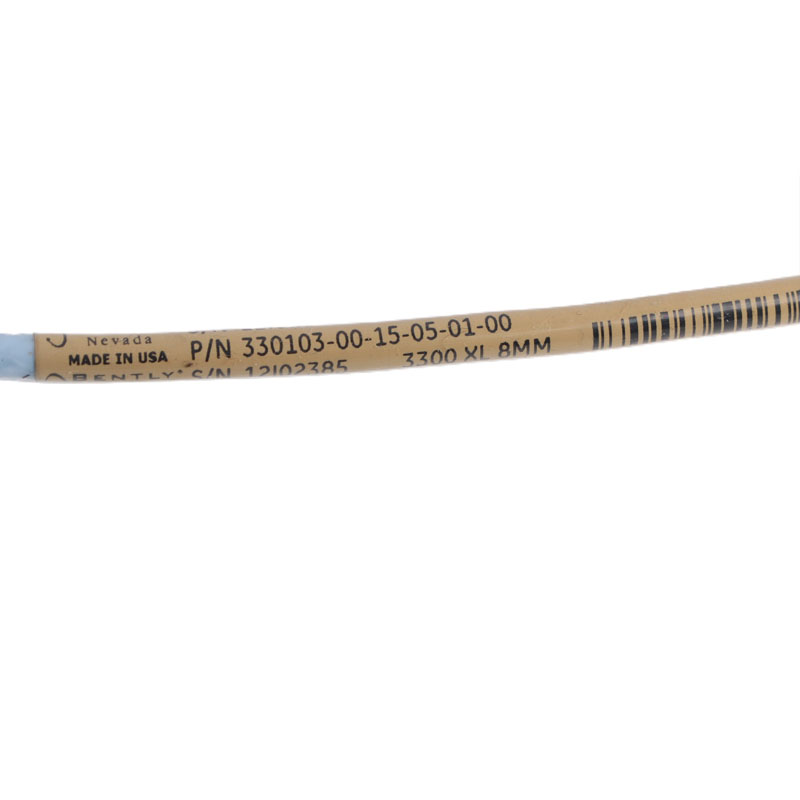

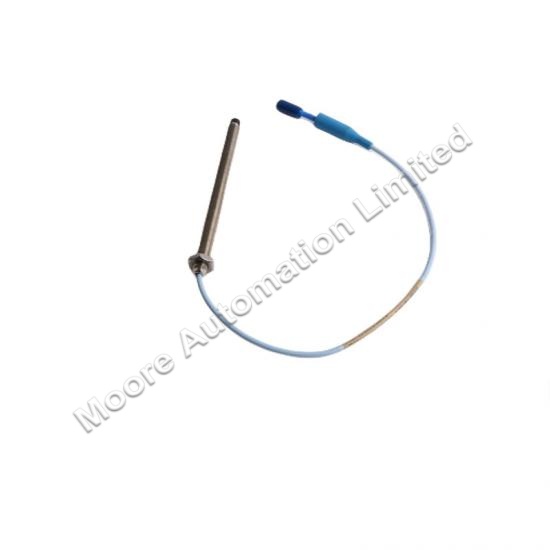

The Bently Nevada 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probe is part of the Bently Nevada 3300 XL Series, which is designed for high-precision non-contact measurement of vibration, displacement, and position.


  • Picture/Video

    Get Products pictures or Video for Inspection

  • Email

    plcinfo@mooreplc.com

  • Whatsapp

    +86 18020776786
Inquiry now
whatsapp
Email
  • Specifications

  • Specification

    Product Image

    Brand Name

    Bently Nevada



    Model Number

    330103-00-15-05-01-00

    Alternate Part Number

    330103-00-15-05-01-00

    Condition

    100% Original

    Quality

    Brand New

    Dimensions

    2x1.6x58cm

    Description

    3300 XL 8 mm Proximity Probes

    Package

    Original Package

    Lead time

    In Stock

    Shipping term

    UPS DHL TNT EMS Fedex

    Payment

    T/T (Bank Transfer)

    Service

    One-Stop Service

    Weight

    0.1kg

    Warranty

    12 Months

  • Product Details
  • Product Description:
    The Bently Nevada 330103-00-15-05-01-00 3300 XL 8 mm Proximity Probe is part of the Bently Nevada 3300 XL Series, which is designed for high-precision non-contact measurement of vibration, displacement, and position. These proximity probes are widely used in machinery condition monitoring and protection systems, offering exceptional performance and reliability in critical industrial environments.

    This specific probe is compatible with Bently Nevada 3300 XL series proximity systems and provides robust operation even in challenging conditions. It features an 8 mm tip diameter and a cable length of 15 feet, making it ideal for monitoring small clearances in applications like turbines, compressors, pumps, and motors.


    Specifications
    Model Number: 330103-00-15-05-01-00
    Tip Diameter: 8 mm
    Probe Length: 15 feet (4.57 meters)
    Cable Type: Armored with connector
    System Compatibility: Compatible with 3300 XL Proximity Transducer Systems
    Operating Range: 0–2 mm (80 mils)
    Sensitivity: 7.87 mV/μm (200 mV/mil)
    Frequency Response: 0–10 kHz
    Probe Body Material: Stainless steel
    Tip Material: PEEK (Polyetheretherketone)
    Environmental Protection: IP67-rated, resistant to oil and contaminants
    Operating Temperature Range:
    Probe: -35°C to +177°C (-30°F to +350°F)
    Cable: -51°C to +177°C (-60°F to +350°F)


    Frequently Asked Questions (FAQ)
    Q1: What is the primary use of the 330103-00-15-05-01-00 proximity probe?
    A: This probe is used for non-contact measurement of vibration, shaft displacement, and position in machinery monitoring systems.

    Q2: What systems are compatible with this probe?
    A: The probe is fully compatible with Bently Nevada 3300 XL series proximity transducer systems.

    Q3: What is the sensitivity of the probe?
    A: The probe has a sensitivity of 7.87 mV/μm (200 mV/mil).

    Q4: Can the probe operate in extreme temperatures?
    A: Yes, the probe can operate in temperatures ranging from -35°C to +177°C (-30°F to +350°F), and its cable is rated for -51°C to +177°C (-60°F to +350°F).


  • Service and Warranty

  • NOTE:

    1. The products quoted are brand new and original with a one-year warranty

    2. Prices are ex works, for shipping calculations, Please send to my Email

    3. Cooperation with the express delivery of DHL / Fedex / UPS / Aramex, etc,Delivery time is approximately '' 5 days ''  from our warehouse to the destination country

    4. Quotation validity: 30 days, if you need to extend, please reconfirm the price after 30 days.

    5. Payment Term: 100% advance payment by bank transfer.

    6. For the products '' in stock '' in the offer, our company can support video inspection
