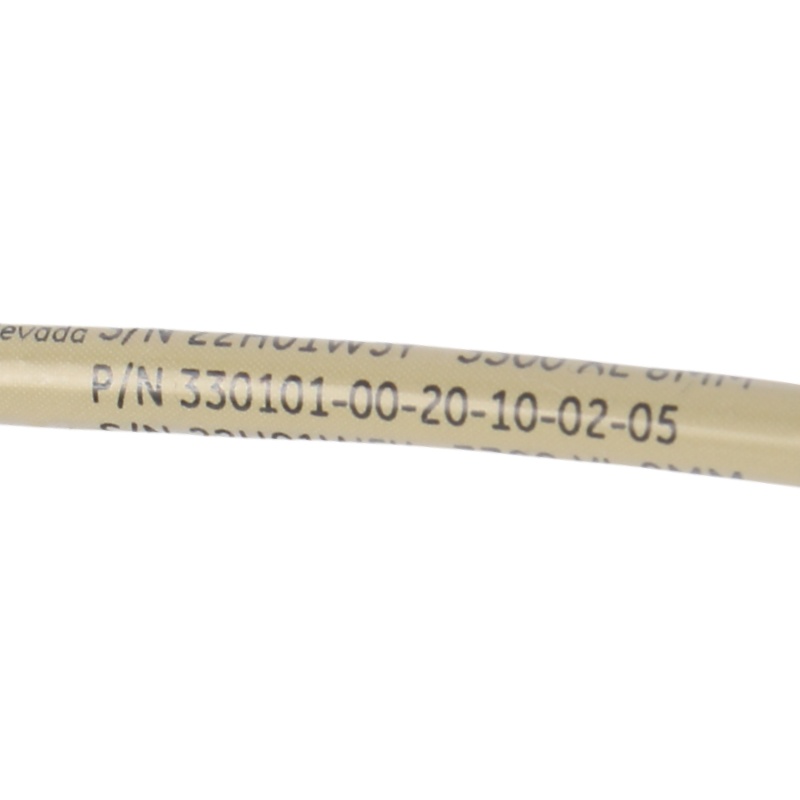

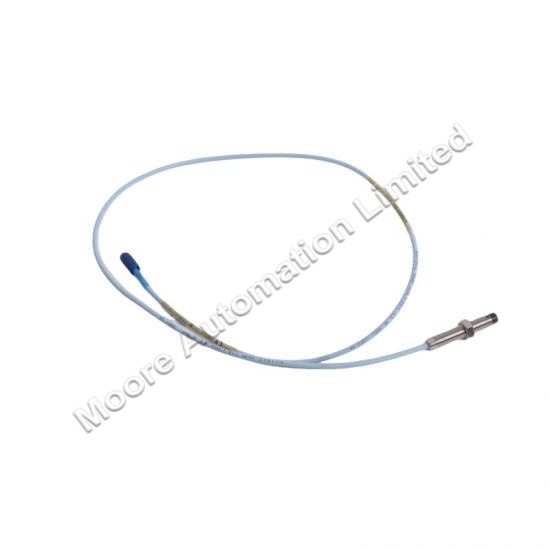

Bently Nevada 330101-00-20-10-02-05 3300 XL 8 mm Proximity

330101-00-20-10-02-05
330101-00-20-10-02-05
330101-00-20-10-02-05
330101-00-20-10-02-05
330101-00-20-10-02-05

Bently Nevada 330101-00-20-10-02-05 3300 XL 8 mm Proximity

Same Day Shipping for Stock Items

DHL / Fedex / UPS / Aramex

Professional one-on-one service

100% brand new and original


The Bently Nevada 330101-00-20-10-02-05 3300 XL 8 mm Proximity Probe is a key component of the Bently Nevada 3300 series, designed for precise and reliable vibration, displacement


  • Picture/Video

    Get Products pictures or Video for Inspection

  • Email

    plcinfo@mooreplc.com

  • Whatsapp

    +86 18020776786
Inquiry now
whatsapp
Email
  • Specifications

  • Specification

    Product Image

    Brand Name

    Bently Nevada



    Model Number

    330101-00-20-10-02-05

    Alternate Part Number

    330101-00-20-10-02-05

    Condition

    100% Original

    Quality

    Brand New

    Dimensions

    1.5x1.3x110cm

    Description

    3300 XL NSv Proximity Probe

    Package

    Original Package

    Lead time

    In Stock

    Shipping term

    UPS DHL TNT EMS Fedex

    Payment

    T/T (Bank Transfer)

    Service

    One-Stop Service

    Weight

    0.06kg

    Warranty

    12 Months

  • Product Details
  • Product Description:
    The Bently Nevada 330101-00-20-10-02-05 3300 XL 8 mm Proximity Probe is a key component of the Bently Nevada 3300 series, designed for precise and reliable vibration, displacement, and position measurements in industrial machinery monitoring applications. With its rugged construction and high sensitivity, this probe is ideal for use in critical machinery protection systems across industries such as oil and gas, power generation, and manufacturing.

    This model features an 8 mm probe tip diameter and a total system length of 20 feet, offering exceptional linearity and reliability for both static and dynamic measurements. It is compliant with API 670 standards, ensuring compatibility with industry requirements for machinery protection.


    Specifications
    Model Number: 330101-00-20-10-02-05
    Probe Tip Diameter: 8 mm
    Thread Size: 5/8-18 UNF
    Unthreaded Length: 2 inches (50.8 mm)
    Total System Length: 20 ft (6.1 m) (includes probe cable and extension cable)
    Cable Type: Armored
    Sensitivity: 7.87 mV/μm (200 mV/mil)
    Linear Range: 80 mils (2 mm)
    Gap Voltage Range: -10 VDC to -24 VDC
    Frequency Response: 0 to 10 kHz (-3 dB)
    Operating Temperature Range:
    Probe: -51°C to +177°C (-60°F to +351°F)
    Cable: -51°C to +177°C (-60°F to +351°F)


    Frequently Asked Questions (FAQ)
    Q1: What is the purpose of the 330101-00-20-10-02-05 Proximity Probe?
    A: This probe is designed to measure vibration, displacement, and position in industrial machinery to ensure efficient operation and prevent unexpected failures.

    Q2: What does the "8 mm" specification refer to?
    A: The "8 mm" refers to the diameter of the probe tip, which is suitable for most standard industrial applications.

    Q3: What is the total length of this probe system?
    A: The total system length is 20 feet (6.1 meters), which includes the probe cable and the extension cable.


  • Service and Warranty

  • NOTE:

    1. The products quoted are brand new and original with a one-year warranty

    2. Prices are ex works, for shipping calculations, Please send to my Email

    3. Cooperation with the express delivery of DHL / Fedex / UPS / Aramex, etc,Delivery time is approximately '' 5 days ''  from our warehouse to the destination country

    4. Quotation validity: 30 days, if you need to extend, please reconfirm the price after 30 days.

    5. Payment Term: 100% advance payment by bank transfer.

    6. For the products '' in stock '' in the offer, our company can support video inspection
