Bently Nevada 3500/65 145988-02 16-Channel Temperature Monitor

3500/65 145988-02
3500/65 145988-02
3500/65 145988-02
3500/65 145988-02
3500/65 145988-02

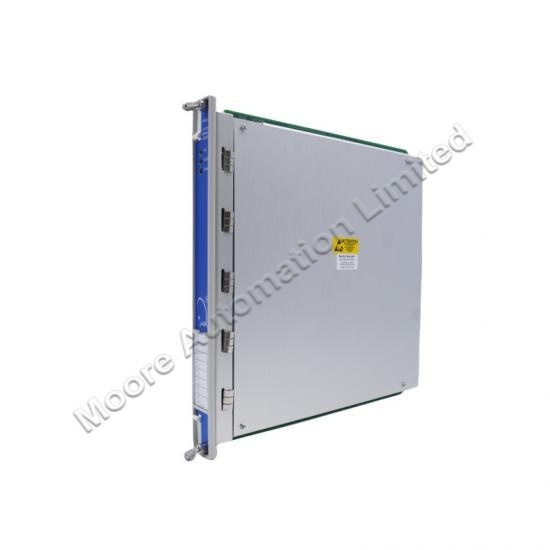

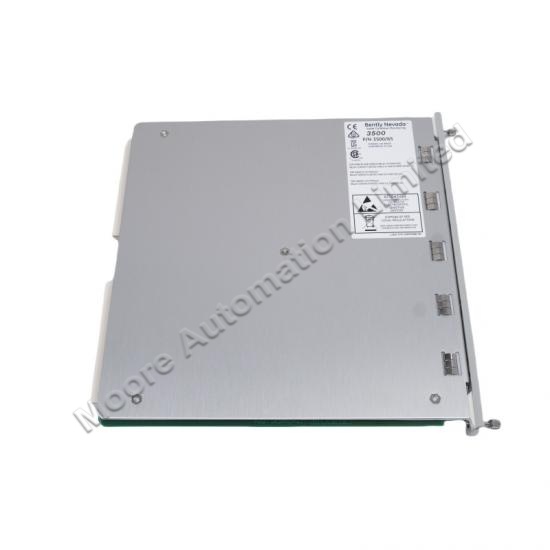

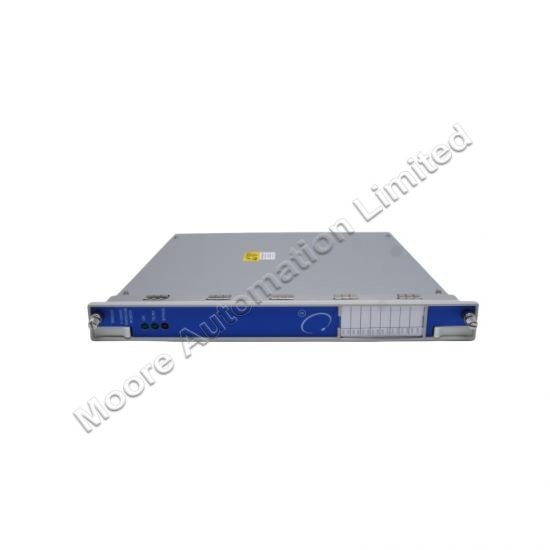

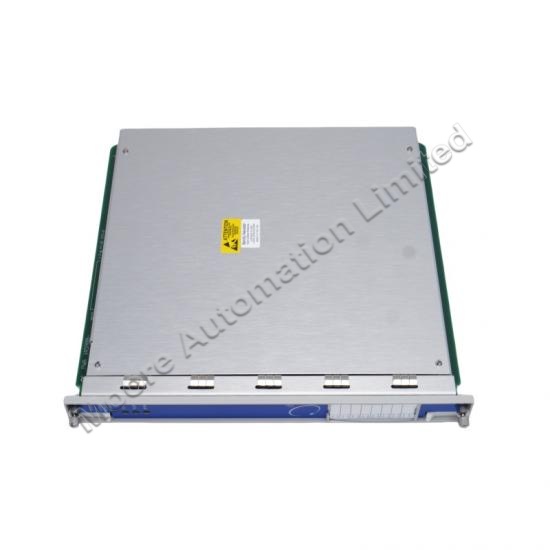

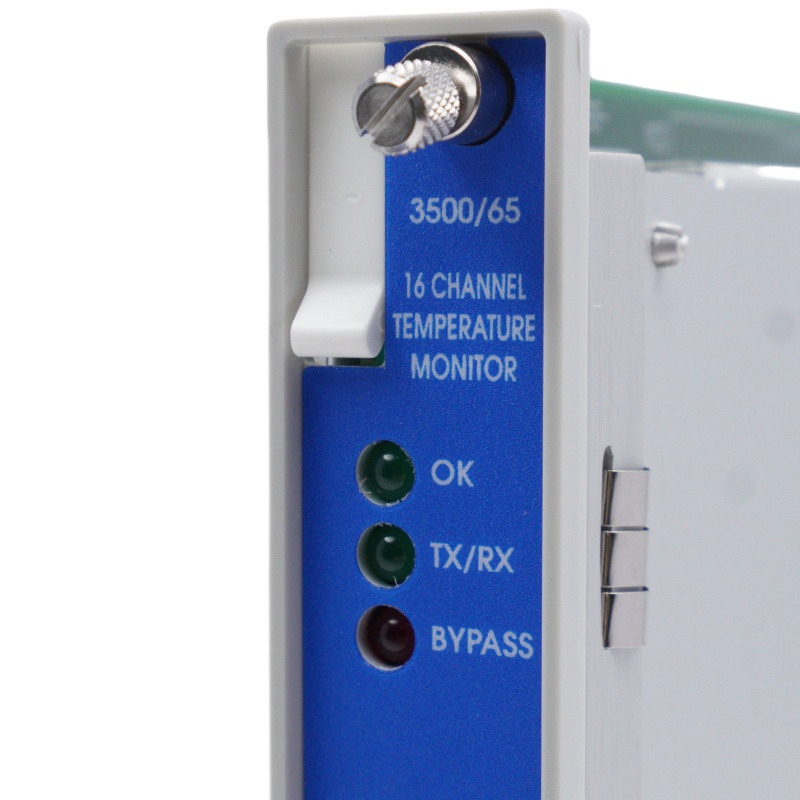

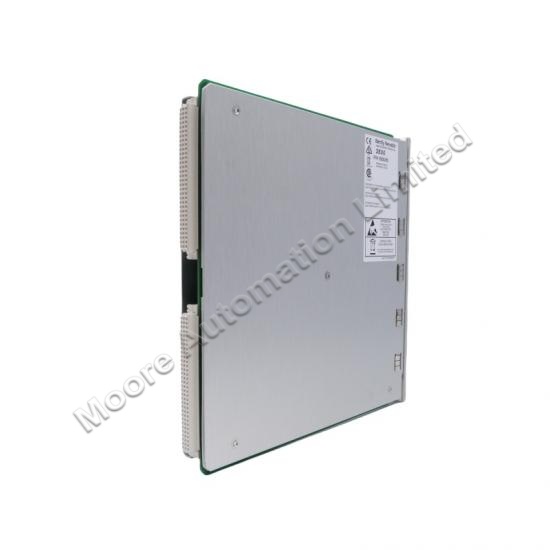

Bently Nevada 3500/65 145988-02 16-Channel Temperature Monitor

Same Day Shipping for Stock Items

DHL / Fedex / UPS / Aramex

Professional one-on-one service

100% brand new and original


The 3500/65 monitor provides 16 channels of temperaturemonitoring and accepts both resistance temperaturedetector (RTD) and isolated tip thermocouple (TC)temperature inputs.


  • Picture/Video

    Get Products pictures or Video for Inspection

  • Email

    plcinfo@mooreplc.com

  • Whatsapp

    +86 18020776786
Inquiry now
whatsapp
Email
  • Specifications

  • Specification

    Product Image

    Brand Name

    Bently Nevada



    Model Number

    3500/65

    Alternate Part Number

    145988-02

    Condition

    100% Original

    Quality

    Brand New

    Dimensions

    2.6 x25.3 x24cm

    Description

    16-Channel Temperature Monitor

    Package

    Original Package

    Lead time

    In Stock

    Shipping term

    UPS DHL TNT EMS Fedex

    Payment

    T/T (Bank Transfer)

    Service

    One-Stop Service

    Weight

    0.75kg

    Warranty

    12 Months

  • Product Details
  • Product Description:

    The 3500/65 monitor provides 16 channels of temperaturemonitoring and accepts both resistance temperaturedetector (RTD) and isolated tip thermocouple (TC)temperature inputs. The monitor conditions these inputs andcompares them against user-programmable alarmsetpoints.The monitor is programmed using the 3500 RackConfiguration Software. You can configure the 16-ChannelTemperature Monitor to accept isolated tip thermocouples,3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs.In Triple Modular Redundant (TMR) configurations, you mustinstall temperature monitors in groups of 3 adjacentmonitors. In this configuration the monitor uses 2 types ofvoting to ensure accurate operation and to avoid singlepoint failures.


    Specifications
    Model: Bently Nevada 3500/65 145988-02
    Number of Channels: 16 (independent)
    Sensor Input Types:
    Resistance Temperature Detectors (RTDs): 2-wire, 3-wire, or 4-wire
    Thermocouples: Type J, K, T, E, R, S, B, and N
    Input Signal Range:
    RTD: 10 Ω to 10 kΩ
    Thermocouple: -270°C to +1820°C (varies by type)
    Accuracy:
    RTD: ±0.1% of full-scale reading
    Thermocouple: ±0.2% of full-scale reading
    Alarm Types:
    Alert and Danger levels (configurable for each channel)
    Output:
    Relay outputs for Alert and Danger conditions
    Communication with 3500 System via rack backplane
    Sampling Rate: High-speed sampling for real-time monitoring
    Operating Temperature Range:
    -30°C to +65°C (-22°F to +149°F)
    Humidity:
    0% to 95% non-condensing


    Frequently Asked Questions (FAQ)
    Q1: What is the primary function of the  3500/65 16-Channel Temperature Monitor?
    A: The module continuously monitors up to 16 temperature points in machinery, providing real-time alarms and diagnostics to protect equipment from thermal damage.

    Q2: What types of sensors are compatible with this module?
    A: The module supports RTDs (2-wire, 3-wire, or 4-wire) and thermocouples (Types J, K, T, E, R, S, B, and N).

    Q3: Is the  3500/65 Temperature Monitor compliant with API 670 standards?
    A: Yes, it is fully compliant with API 670 requirements, making it suitable for critical machinery monitoring applications.

    Q4: Can this module handle both RTDs and thermocouples simultaneously?
    A: Yes, the 3500/65 can be configured to handle a combination of RTDs and thermocouples, depending on system requirements.


  • Service and Warranty

  • NOTE:

    1. The products quoted are brand new and original with a one-year warranty

    2. Prices are ex works, for shipping calculations, Please send to my Email

    3. Cooperation with the express delivery of DHL / Fedex / UPS / Aramex, etc,Delivery time is approximately '' 5 days ''  from our warehouse to the destination country

    4. Quotation validity: 30 days, if you need to extend, please reconfirm the price after 30 days.

    5. Payment Term: 100% advance payment by bank transfer.

    6. For the products '' in stock '' in the offer, our company can support video inspection
