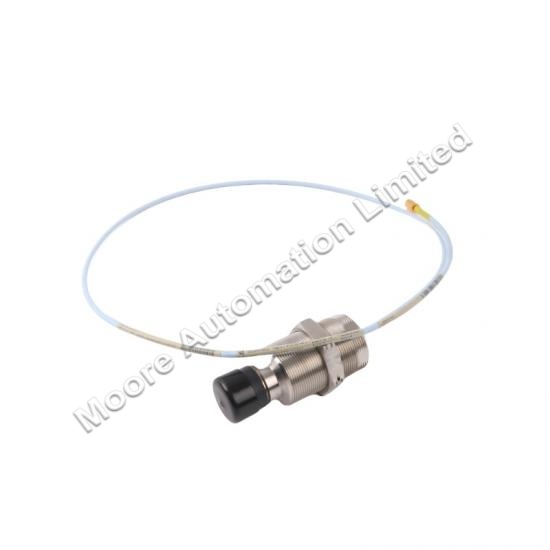

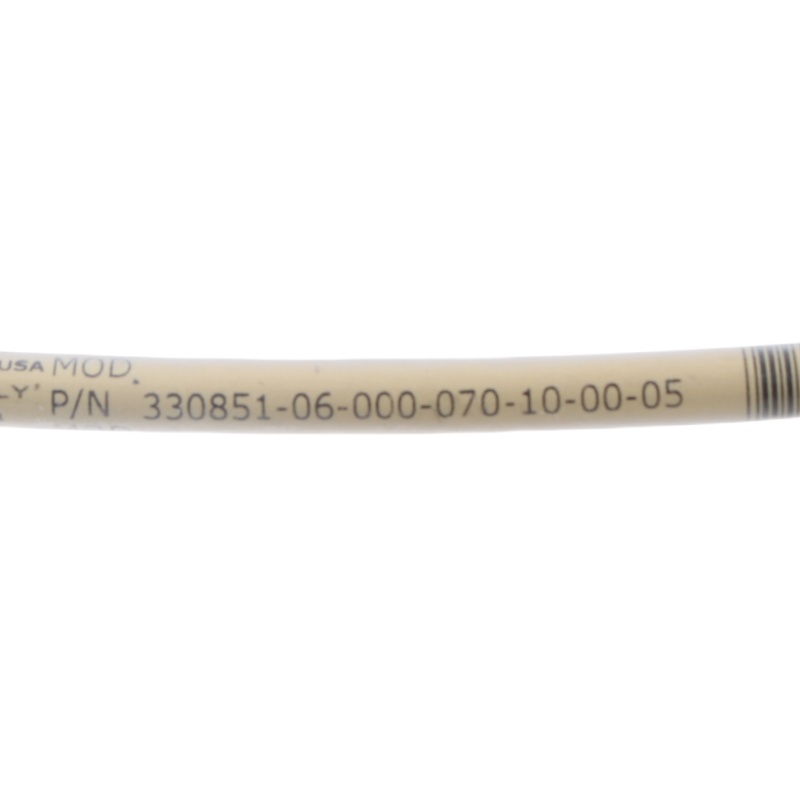

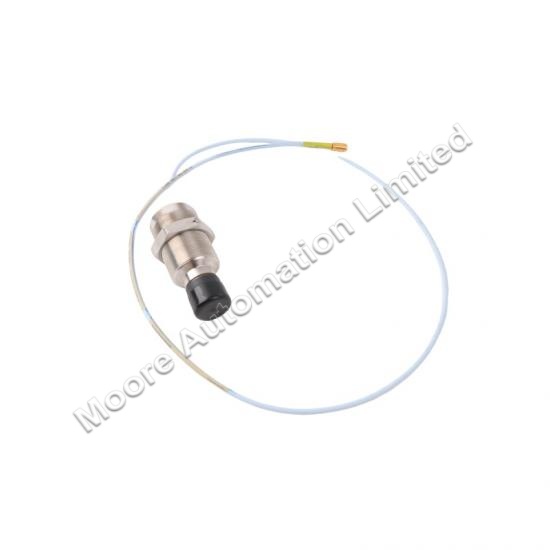

Bently Nevada 330851-06-000-070-10-00-05 3300 XL 25 mm Proximity Probe

330851-06-000-070-10-00-05
330851-06-000-070-10-00-05
330851-06-000-070-10-00-05
330851-06-000-070-10-00-05
330851-06-000-070-10-00-05

Bently Nevada 330851-06-000-070-10-00-05 3300 XL 25 mm Proximity Probe

Same Day Shipping for Stock Items

DHL / Fedex / UPS / Aramex

Professional one-on-one service

100% brand new and original


The Bently Nevada 330851-06-000-070-10-00-05 3300 XL 25 mm Proximity Probe is part of the Bently Nevada 3300 XL series, designed for non-contact measurement of displacement, position


  • Picture/Video

    Get Products pictures or Video for Inspection

  • Email

    plcinfo@mooreplc.com

  • Whatsapp

    +86 18020776786
Inquiry now
whatsapp
Email
  • Specifications

  • Specification

    Product Image

    Brand Name

    Bently Nevada



    Model Number

    330851-06-000-070-10-00-05

    Alternate Part Number

    330851-06-000-070-10-00-05

    Condition

    100% Original

    Quality

    Brand New

    Dimensions

    110x5x5cm

    Description

    3300 XL 25 mm Proximity Probe

    Package

    Original Package

    Lead time

    In Stock

    Shipping term

    UPS DHL TNT EMS Fedex

    Payment

    T/T (Bank Transfer)

    Service

    One-Stop Service

    Weight

    0.66kg

    Warranty

    12 Months

  • Product Details
  • Product Description:
    The Bently Nevada 330851-06-000-070-10-00-05 3300 XL 25 mm Proximity Probe is part of the Bently Nevada 3300 XL series, designed for non-contact measurement of displacement, position, and vibration in machinery. This proximity probe is specifically engineered to provide accurate and reliable measurements in demanding industrial environments, such as in turbines, compressors, pumps, and other critical rotating machinery.

    The probe works in conjunction with a 3300 XL Proximitor Sensor and an extension cable to form a complete proximity measurement system. The 3300 XL 25 mm system is optimized for large shaft diameter applications or where increased linear range is required. It complies with API 670 standards and delivers high-resolution measurements for equipment monitoring and protection.


    Specifications
    Model Number: 330851-06-000-070-10-00-05
    Probe Tip Diameter: 25 mm (0.984 inches)
    Linear Range: 12.7 mm (0.5 inches)
    Probe Length: 6 meters (probe cable length)
    Extension Cable Length: 7 meters (combined system cable length)
    Total System Length: 12 meters (probe + extension cable)
    Thread Size: 3/4-16 UNF-2A
    Temperature Range:
    Operating: -35°C to +177°C (-31°F to +351°F)
    Storage: -51°C to +177°C (-60°F to +351°F)
    System Accuracy:
    ±0.0076 mm (±0.0003 inches) across the linear range
    Frequency Response:
    0 to 10 kHz
    Material:
    Probe body: Stainless steel
    Probe tip: PEEK (Polyetheretherketone)
    Power Supply Voltage (Proximitor Sensor): -18 to -24 VDC
    Compliance: API 670 standard


    Frequently Asked Questions (FAQ)
    Q1: What is the primary use of the 330851-06-000-070-10-00-05 proximity probe?
    A: This probe is designed for non-contact measurement of displacement, position, and vibration in rotating machinery, providing data critical for equipment protection and diagnostics.

    Q2: What makes the 3300 XL 25 mm Proximity Probe different from other proximity probes?
    A: The 25 mm probe offers a longer linear range (12.7 mm) and is optimized for applications with large shaft diameters, making it ideal for heavy-duty industrial machinery.

    Q3: Can the 330851 probe operate in high-temperature environments?
    A: Yes, the probe operates in temperatures ranging from -35°C to +177°C and can withstand storage temperatures as low as -51°C.

  • Service and Warranty

  • NOTE:

    1. The products quoted are brand new and original with a one-year warranty

    2. Prices are ex works, for shipping calculations, Please send to my Email

    3. Cooperation with the express delivery of DHL / Fedex / UPS / Aramex, etc,Delivery time is approximately '' 5 days ''  from our warehouse to the destination country

    4. Quotation validity: 30 days, if you need to extend, please reconfirm the price after 30 days.

    5. Payment Term: 100% advance payment by bank transfer.

    6. For the products '' in stock '' in the offer, our company can support video inspection
