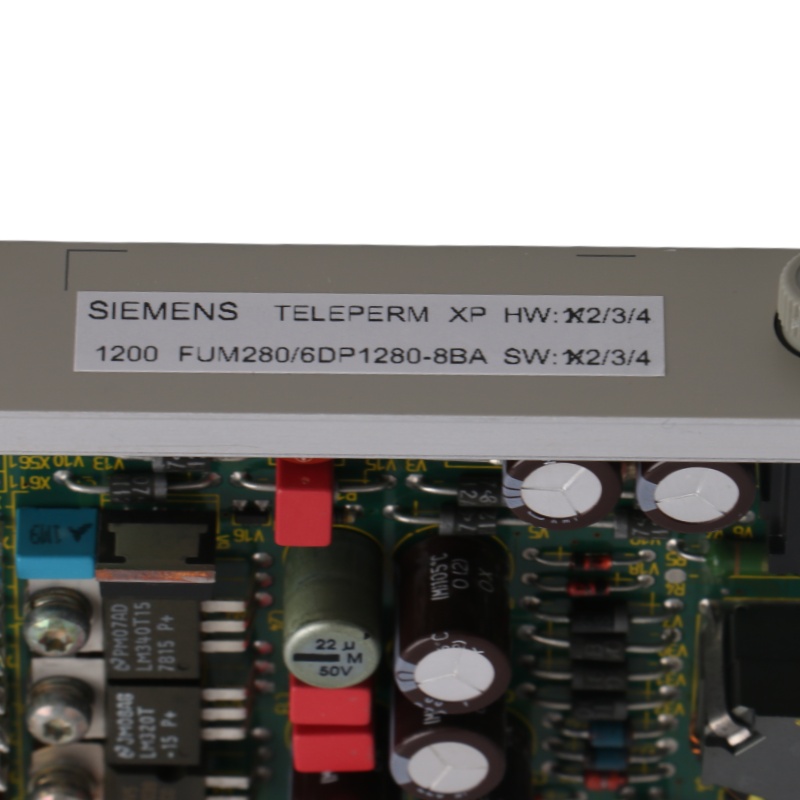

Siemens 6DP1280-8BA FUM 280 Function Module

The Siemens 6DP1280-8BA FUM 280 Function Module is designed for control applications, providing functionality for multiple analog and binary signal processing. This module supports various control algorithms and is suitable for use in a range of industrial applications.

Product Specifications:
Model: 6DP1280-8BA
Type: FUM 280 Function Module
Control Capability:
Supports up to 2 autonomous continuous controllers (P, PI, PD, or PID) or 4 analog controller outputs with control algorithms.

Analog Outputs:
Output Range: 0/4 to 20 mA
Up to 4 limit values can be set per analog input (AI).
Analog Inputs:
Supports 2 or 4 analog inputs with a range of 0/4 to 20 mA.
Allows for the acquisition of 2 analog values.
Binary Signal Processing:
Binary Signal Conditioning: For travel limit switches.
Inputs: 13 binary signal inputs.
Outputs: 13 binary signal outputs (note that redundancy is not possible for outputs).
Redundant Use: Suitable for redundant configurations or coupling modules.
Isolation: No electrical isolation for the outputs.
General Use: Designed for use in process automation and control applications where analog and binary signals are required.

Common Questions:
Question: What is the primary function of the Siemens 6DP1280-8BA FUM 280 Function Module?
Answer: The FUM 280 module is designed to provide control capabilities for industrial processes, supporting P, PI, PD, or PID controllers with multiple analog and binary inputs and outputs.

Question: How many autonomous controllers can the FUM 280 support?
Answer: The module can support up to 2 autonomous continuous controllers or provide 4 analog controller outputs.

Question: What is the output range for the analog outputs on this module?
Answer: The analog outputs have a range of 0/4 to 20 mA.

Question: How many analog inputs does the FUM 280 support?
Answer: The module supports either 2 or 4 analog inputs.

Question: Can the FUM 280 module handle redundant configurations?
Answer: Yes, it is suitable for redundant use or as a coupling module.

Question: How many binary signal inputs and outputs does this module have?
Answer: The module has 13 binary signal inputs and 13 binary signal outputs.

Question: Is there electrical isolation for the binary outputs?
Answer: No, the FUM 280 does not provide electrical isolation for the outputs.

Question: What types of control algorithms can be implemented with this module?
Answer: The module can implement control algorithms such as P (Proportional), PI (Proportional-Integral), PD (Proportional-Derivative), or PID (Proportional-Integral-Derivative).

Question: Can the FUM 280 module be used for limit value setting?
Answer: Yes, up to 4 limit values can be set per analog input (AI) for monitoring and control purposes.

Question: In what applications is the FUM 280 typically used?
Answer: The FUM 280 is typically used in process automation applications that require the processing of both analog and binary signals, such as in manufacturing, chemical processing, and power generation.
