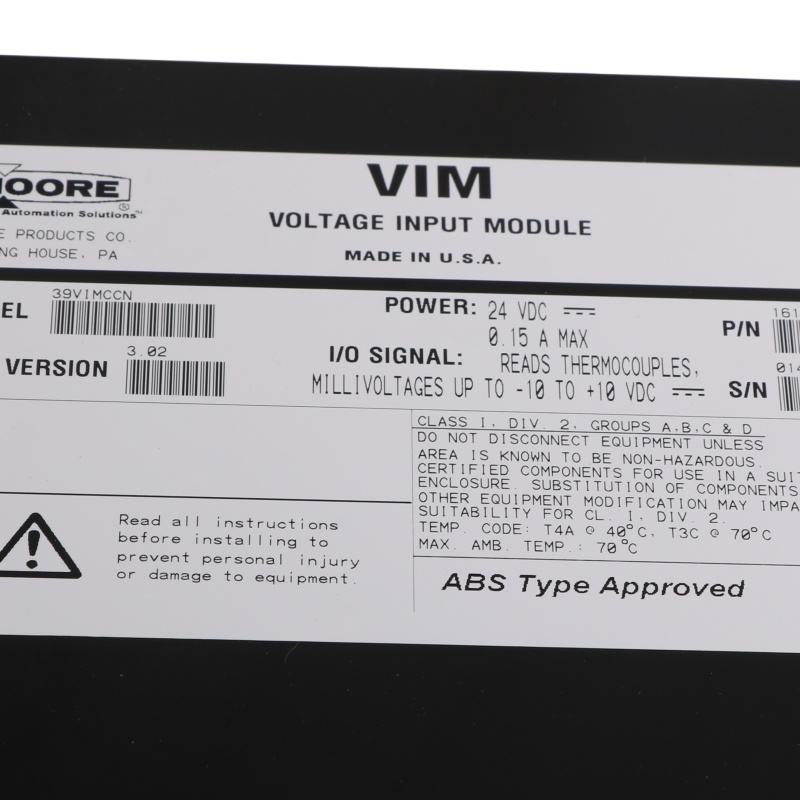

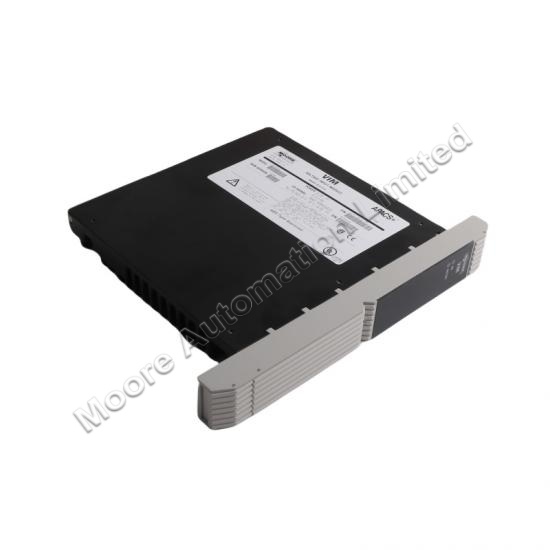

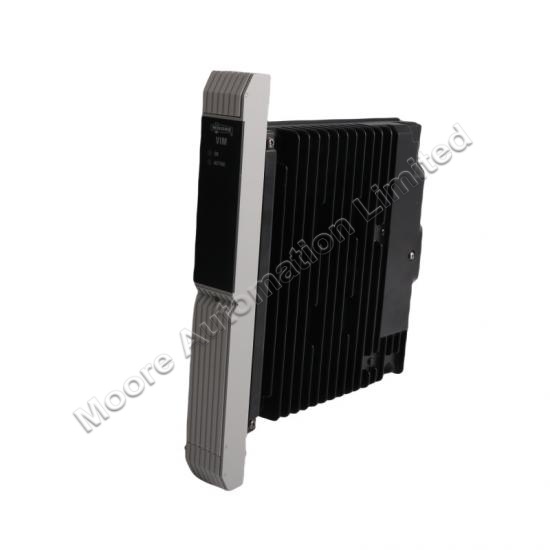

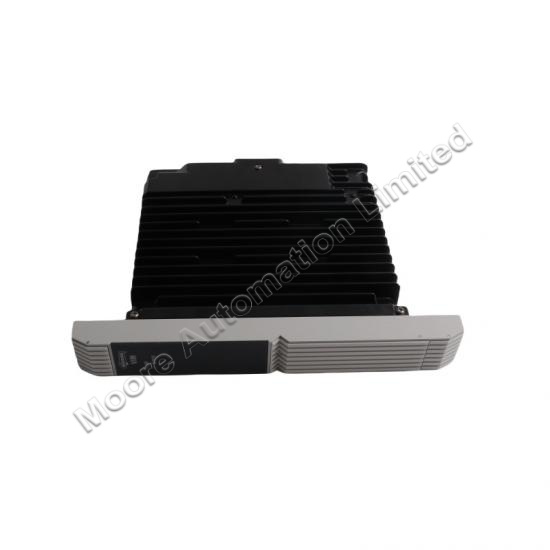

SIEMENS 39VIMCCN VOLTAGE INPUT MODULE

The SIEMENS 39VIMCCN 39VIM-CCN Voltage Input Module is a specialized component used for the purpose of monitoring and processing voltage inputs within an industrial automation system. This module typically integrates into systems to ensure precise voltage measurements, which are critical for various control and monitoring tasks in industrial environments.

Here’s the translation of the common questions regarding the SIEMENS 39VIMCCN 39VIM-CCN Voltage Input Module:

1. What is the main function of the SIEMENS 39VIM-CCN Voltage Input Module?
Answer: The module is primarily used for monitoring and processing voltage input signals in industrial automation systems. It converts analog voltage signals into digital values for further processing and monitoring by control systems. This type of module is commonly used in power management, distribution, factory automation, and equipment condition monitoring.

2. What is the supported voltage input range?
Answer: The specific voltage input range depends on the model configuration. Typically, such voltage input modules support a wide range of inputs, such as 0-10V, ±10V, or other ranges. It's recommended to refer to the product’s technical manual or datasheet for the exact voltage input range for this model.

3. How does this module communicate with PLC or DCS?
Answer: The Siemens 39VIM-CCN module usually communicates with PLCs (Programmable Logic Controllers) or DCS (Distributed Control Systems) via standard industrial communication protocols like PROFIBUS, PROFINET, Modbus, etc., ensuring that voltage data can be transmitted in real-time to the control devices.

4. How is the module installed?
Answer: The module is typically designed for DIN rail mounting, making it easy to integrate into existing control cabinets or racks. During installation, proper wiring is essential to avoid electrical short circuits or signal interference. Detailed installation steps can be found in the module’s user manual.

5. What are common issues and troubleshooting methods?
Voltage readings are inaccurate or unstable:
Check the voltage input source to ensure signal stability.
Inspect the module’s wiring for loose connections or poor contact.
Ensure proper communication between the module and PLC or control system
Module won’t start or isn’t working:
Verify that the power supply is functioning correctly.
Check the module’s status indicators for error codes.
Restart the system or update the firmware if necessary.
Communication is disrupted or unstable:
Check communication cables and connectors for damage.
Ensure communication protocol configurations are correct and that the addresses and baud rates match between the PLC or DCS and the module.

6. How to calibrate this voltage input module?
Answer: Voltage input modules are usually calibrated at the factory, but after prolonged use, recalibration might be needed. Calibration can often be done using the module’s accompanying software or via the calibration functions of the DCS/PLC system to maintain accurate voltage measurements.
