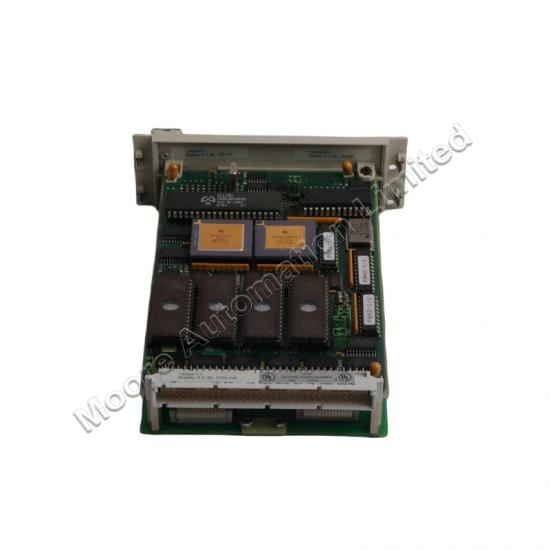

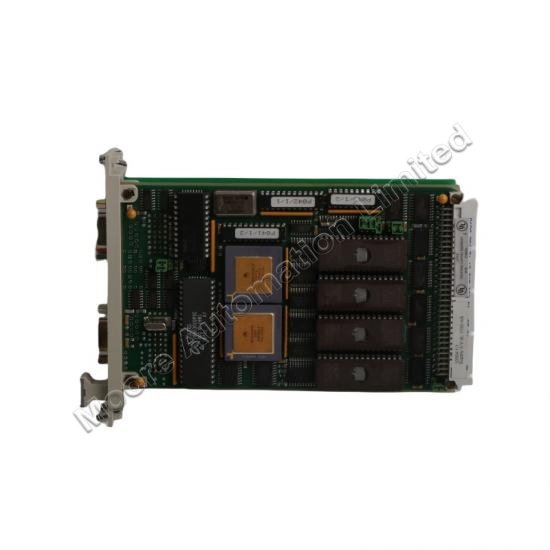

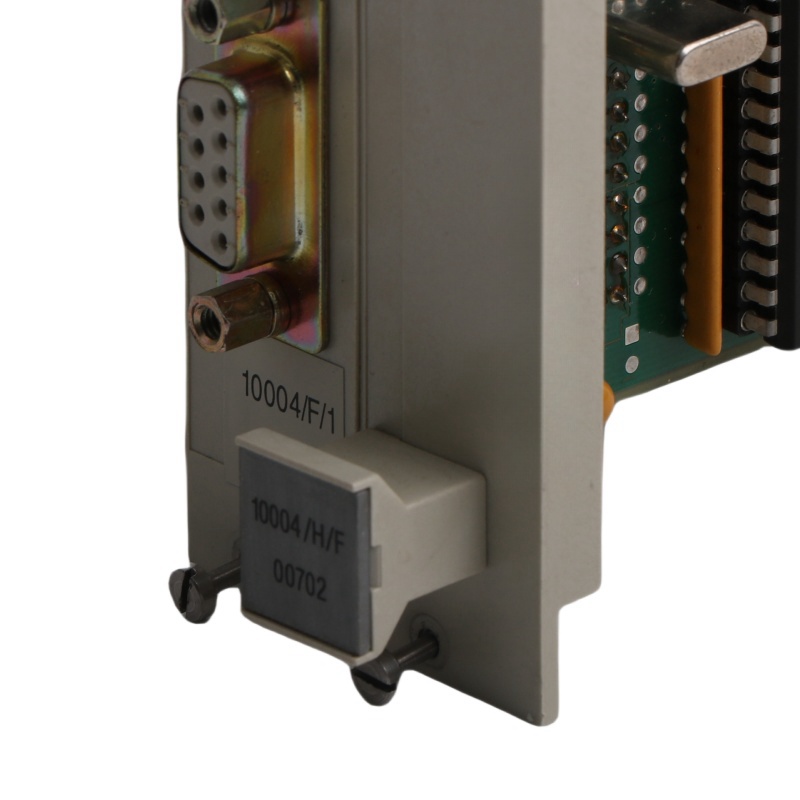

HONEYWELL 10004/H/F Communication Module

Introduction to the Honeywell 51309276-150 High-Performance I/O Link Card In the realm of industrial automation and control systems, the Honeywell 51309276-150 High-Performance I/O Link Card plays a vital role in streamlining communication between various subsystems. This advanced I/O Link card is specifically designed for use within Honeywell’s High Performance Process Manager (HPM), making it an integral part of enhancing control and monitoring capabilities within complex process systems. Understanding its features, operation, and role within the larger HPM system is crucial for engineers and system operators aiming to maximize system performance and reliability. Key Components and Functionality of the High-Performance I/O Link Card The Honeywell 51309276-150 is not just a simple I/O module. It is a crucial interface between the High-Performance Process Manager and its I/O subsystem, ensuring seamless data flow and communication. The card integrates several essential components that facilitate this functionality: I/O Link Processor: This is the heart of the I/O Link card, handling all communication tasks between the HPM and I/O subsystems. SRAM Memory: The processor uses SRAM to exchange data with the Communications/Control card, providing the necessary buffer for real-time operations. I/O Link Driver/Receiver Interface: This component enables the physical communication between the I/O subsystem and the HPM, ensuring reliable data transmission. Power Converter: A critical feature, the power converter steps down the 24 Vdc input power to 5 Vdc, which is required for the operation of the HPMM cards and the HPM UCN Interface module. The card is designed to support redundant connections and can interface with up to 40 I/O processors (IOPs), ensuring high availability and fault tolerance in critical process environments. Installation and Integration of the High-Performance I/O Link Card The integration of the 51309276-150 I/O Link Card into the High-Performance Process Manager (HPM) is straightforward but requires precision. It is part of a set of HPMM cards that occupy the first two slot positions in a 7-slot or 15-slot card file. These slots are populated as follows: High-Performance Communications/Control Card (51403988-150) High-Performance I/O Link Card (51309276-150) HPM UCN Interface Module (51402573-150) The I/O Link card is positioned to communicate directly with the I/O subsystem and serves as the bridge for data exchange, ensuring optimal operation of the entire HPM system. The card setup and assembly should be done carefully to ensure that each component is installed into the correct slot for maximum efficiency. Indicators and Diagnostics for the High-Performance I/O Link Card Understanding the indicators on the I/O Link card is essential for troubleshooting and maintaining system performance. Several key indicators provide real-time feedback on the system’s status: Power Indicator: The power indicator light up whenever 24 Vdc power is s...

Introduction to the GE Fanuc IC200CPUE05 The GE Fanuc IC200CPUE05 VersaMax controller module is a versatile and powerful solution tailored for modern industrial automation needs. Equipped with advanced features such as configurable user memory, embedded communication ports, and high-speed processing, this module seamlessly integrates into diverse systems, delivering exceptional reliability and efficiency. Whether it's small-scale setups or extensive operations, the IC200CPUE05 offers unmatched performance and flexibility. Key Features of the GE Fanuc IC200CPUE05 The IC200CPUE05 VersaMax controller module is designed to meet the most demanding industrial requirements with the following standout features: Configurable User Memory: Offers 64 KB of memory for custom applications, ensuring adaptability across various operations. Embedded Communication Ports: Includes three communication ports—RS-232, RS-485, and Ethernet—for seamless device connectivity and data exchange. Super Capacitor for Memory Backup: Retains critical data during power outages for up to an hour. Floating Point Data Processing: Facilitates complex calculations, making the module ideal for intricate applications. Run/Stop Switch and Status LEDs: Simplifies operations and monitoring with user-friendly controls and visual status indicators. Technical Specifications The IC200CPUE05 is engineered for peak performance, with technical specifications that set it apart in the market: Dimensions: Compact size of 126 x 128 x 69.1 mm (W x H x D). Power Requirements: Operates on 5V at 220mA and 3.3V at 570mA. Boolean Execution Speed: Processes Boolean logic at a rapid 0.8 ms/K. Real-Time Clock Accuracy: Ensures precise timekeeping with an accuracy of 100 ppm (±9 seconds/day). Ethernet Data Rate: Delivers data at 10 Mbps with full- or half-duplex modes. EGD Configuration: Supports up to 32 Ethernet Global Data (EGD) exchanges with 1400 bytes per exchange. Communication Capabilities The IC200CPUE05 excels in its communication features, providing seamless integration into distributed systems: SRTP Server Connections: Manages up to 8 simultaneous connections for smooth system operation. Time Synchronization: Utilizes Network Time Protocol (NTP) for accurate system-wide timekeeping. EGD Configuration: Enables easy loading of EGD settings from the PLC to the programmer. Remote and Local Management: Allows remote station management over UDP and local control via RS-232. Applications of the GE Fanuc IC200CPUE05 The IC200CPUE05 VersaMax controller module is a versatile solution for a variety of industrial automation needs: Factory Automation: Ideal for systems that require rapid Boolean logic execution. Distributed Control Systems: Supports extensive I/O modules, making it perfect for large-scale operations. Complex Applications: Suitable for environments needing precise time synchronization and floating-point data processing. Conclusion The GE Fanuc IC200CPUE05 VersaMax controller module is a game-cha...

What is the WOODWARD 8200-226 Servo Position Controller? The WOODWARD 8200-226 Servo Position Controller is a cutting-edge device designed for precise servo control in industrial and automation systems. Known for its reliability and advanced features, it provides exceptional performance in applications requiring accurate position control. Key Specifications of the WOODWARD 8200-226 Understanding the technical specifications of this controller helps to highlight its capabilities: Dimensions: The controller has a compact size of 33x20.2x6.4 cm, making it suitable for space-constrained setups. Weight: Weighing just 1.56 kg, it is lightweight yet robust, ensuring durability without adding significant bulk. Applications of the WOODWARD 8200-226 The WOODWARD 8200-226 finds its use in various industries, including: Industrial Automation: Provides precise control of machinery and equipment for optimized productivity. Aerospace Systems: Used in advanced servo systems to enhance accuracy and reliability. Energy Sector: Plays a vital role in systems like turbines, ensuring efficient operation. Benefits of the WOODWARD 8200-226 This servo position controller offers several advantages, such as: High Precision: Ensures accurate positioning for complex operations. Compact Design: Its small size facilitates easy integration into existing systems. Durable Build: The lightweight yet robust design ensures long-lasting performance. Why Choose the WOODWARD 8200-226? If you’re looking for a reliable, high-performing servo controller, the WOODWARD 8200-226 is a standout choice. Its advanced features and versatile applications make it an ideal solution for businesses striving for efficiency and accuracy in their operations. Conclusion The WOODWARD 8200-226 Servo Position Controller combines precision, durability, and versatility to meet the demands of modern industrial and automation applications. Its compact design and lightweight build ensure it can adapt to various environments, making it a valuable addition to any system requiring reliable position control. Whether for industrial automation, aerospace, or energy systems, this controller is a trusted choice for professionals worldwide.

Introduction to the GE IS420UCSCH1A UCSC Controller The GE IS420UCSCH1A UCSC controller is a cutting-edge device designed to meet the demanding needs of industrial automation systems. Known for its compact design and robust functionality, this controller has gained significant traction in various industries. In this article, we’ll explore the dimensions, weight, and key aspects of the GE IS420UCSCH1A UCSC controller to help you better understand its capabilities. Dimensions: Compact Design for Versatile Applications One of the standout features of the GE IS420UCSCH1A UCSC controller is its compact design. Measuring 5.5 x 15.3 x 20.3 cm, this controller is small enough to fit into tight spaces without compromising on performance. Its size makes it ideal for applications where space is a constraint, such as in control panels or compact machinery setups. Despite its small footprint, it delivers powerful performance to handle complex tasks with ease. Weight: Lightweight Yet Durable Weighing just 1.52 kg, the GE IS420UCSCH1A UCSC controller is impressively lightweight. This feature enhances its portability and simplifies installation, allowing for easier integration into various systems. Additionally, its lightweight nature does not compromise its durability, as it is built to withstand demanding industrial environments. Key Features of the GE IS420UCSCH1A UCSC Controller The GE IS420UCSCH1A UCSC controller is equipped with advanced features that make it a reliable choice for industrial applications. Some of its notable features include: High Processing Power: Ensures seamless operation of complex automation tasks. Energy Efficiency: Designed to minimize energy consumption while maintaining top performance. Robust Build: Engineered to withstand harsh operating conditions, ensuring long-term reliability. Easy Integration: Compatible with a wide range of industrial systems and protocols. Applications of the GE IS420UCSCH1A UCSC Controller Thanks to its versatile design and robust capabilities, the GE IS420UCSCH1A UCSC controller is used across various industries. Common applications include: Manufacturing Plants: For controlling automated machinery and processes. Energy Sector: To optimize operations in power generation and distribution systems. Oil and Gas: For monitoring and controlling equipment in refineries and drilling operations. Transportation: Used in traffic control and railway signaling systems. Why Choose the GE IS420UCSCH1A UCSC Controller? The GE IS420UCSCH1A UCSC controller stands out for its combination of compact size, lightweight design, and high performance. It offers a reliable solution for industries looking to enhance operational efficiency while maintaining flexibility. Its ability to integrate seamlessly into existing systems makes it a cost-effective choice for businesses aiming to upgrade their automation capabilities. Conclusion The GE IS420UCSCH1A UCSC controller is a versatile and efficient device tailored for modern industr...
