Plc Dcs Processor Module
Home Bently Nevada

Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Proximity

330106-XX-XX-10-02-00 MOD:145628-01
330106-XX-XX-10-02-00 MOD:145628-01
330106-XX-XX-10-02-00 MOD:145628-01
330106-XX-XX-10-02-00 MOD:145628-01
330106-XX-XX-10-02-00 MOD:145628-01

Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Proximity

Same Day Shipping for Stock Items

DHL / Fedex / UPS / Aramex

Professional one-on-one service

100% brand new and original

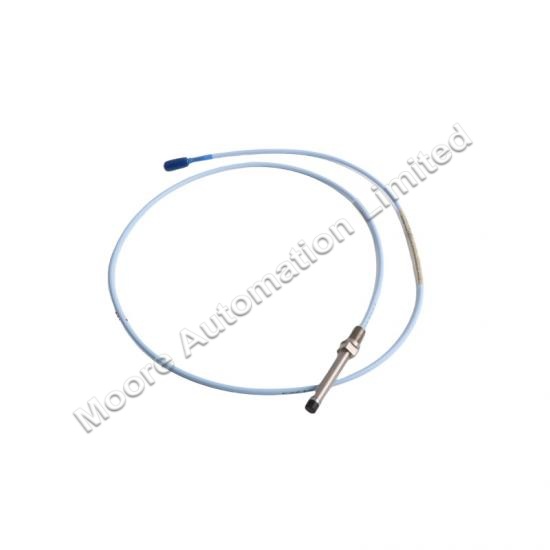

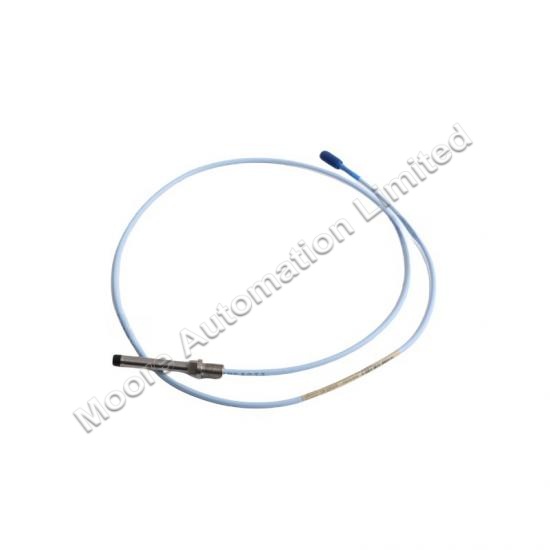

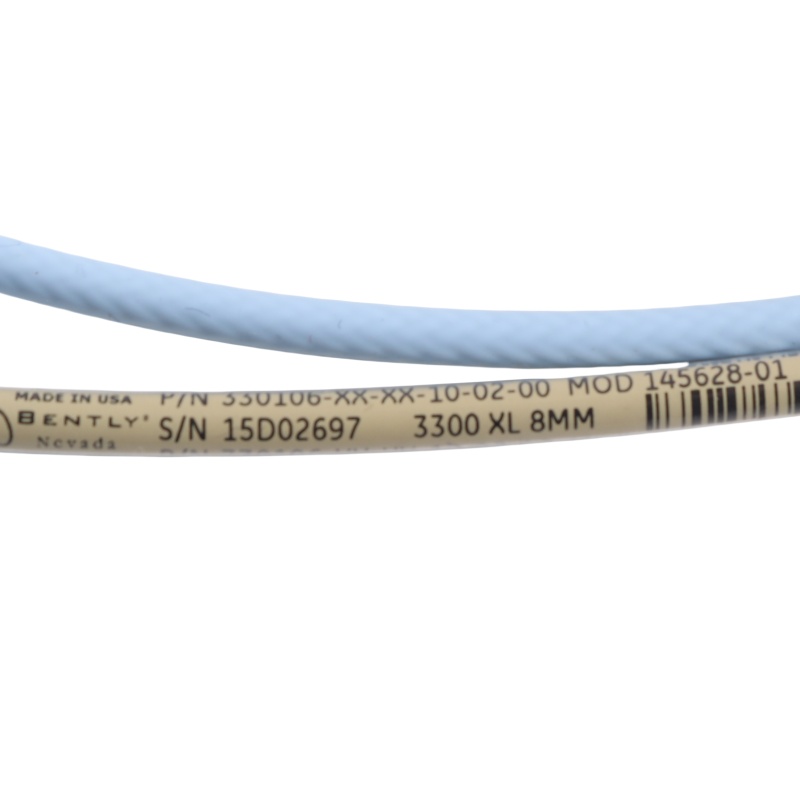

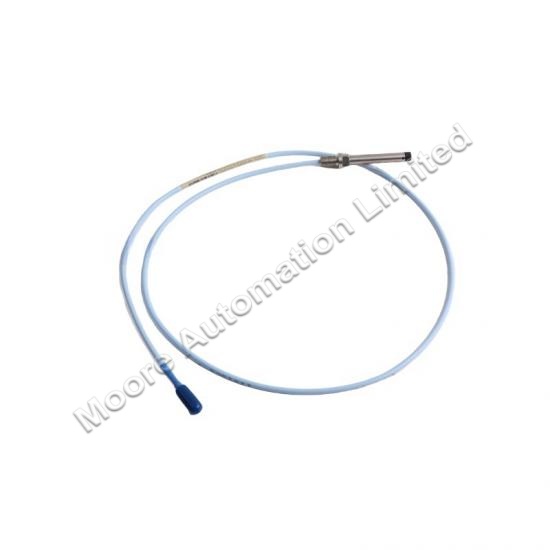

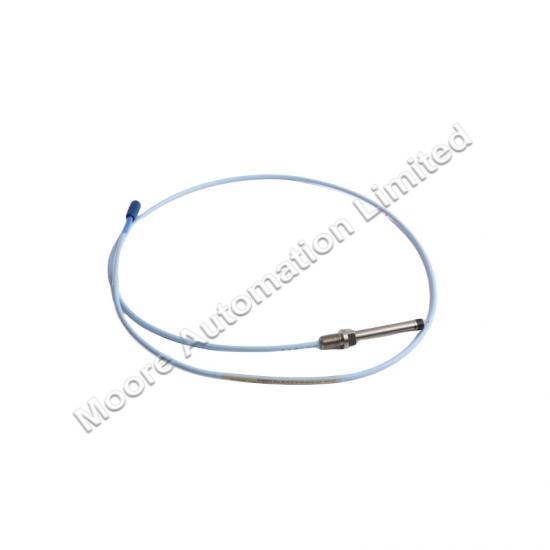

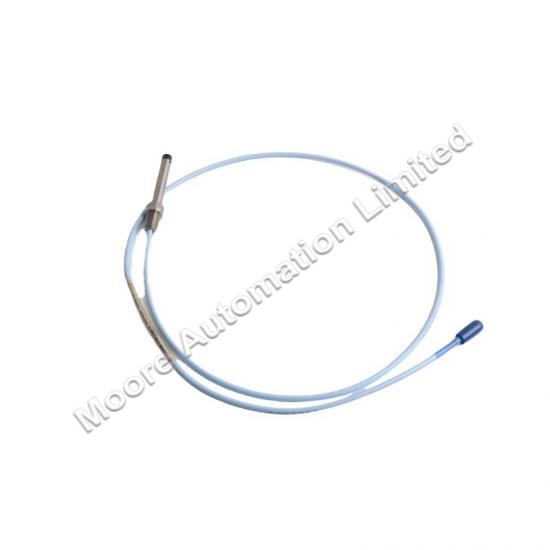

The Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Proximity Probe is a high-precision, durable proximity transducer system


  • Picture/Video

    Get Products pictures or Video for Inspection

  • Email

    plcinfo@mooreplc.com

  • Whatsapp

    +86 18020776786
Inquiry now
whatsapp
Email
  • Specifications

  • Specification

    Product Image

    Brand Name

    Bently Nevada



    Model Number

    330106-XX-XX-10-02-00

    Alternate Part Number

    MOD:145628-01

    Condition

    100% Original

    Quality

    Brand New

    Dimensions

    1.3x1.3x113cm

    Description

    3300 XL 8 mm Proximity

    Package

    Original Package

    Lead time

    In Stock

    Shipping term

    UPS DHL TNT EMS Fedex

    Payment

    T/T (Bank Transfer)

    Service

    One-Stop Service

    Weight

    0.06kg

    Warranty

    12 Months

  • Product Details
  • Product Description:
    The Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01 3300 XL 8 mm Proximity Probe is a high-precision, durable proximity transducer system designed for critical machinery monitoring and vibration measurements. This model is part of the Bently Nevada 3300 XL series, which is known for its exceptional reliability, performance, and compliance with API 670 standards. The probe is specifically engineered for measuring shaft displacement, position, and vibration in demanding industrial environments, including turbines, compressors, pumps, and other rotating equipment.

    The 330106 proximity probe features a compact design with an 8 mm tip diameter, allowing for easy installation in tight spaces. It offers a linear range of measurements with excellent accuracy and stability over a wide temperature range. This model is highly resistant to electrical and environmental noise, ensuring consistent performance in challenging operating conditions.


    Specifications:

    Parameter

    Details

    Probe Tip Diameter

    8 mm

    Probe Length

    1.3x1.3x113cm

    Linear Range

    0 to 2 mm (80 mils)

    Sensitivity

    7.87 mV/μm (200 mV/mil)

    Output Signal

    Proportional to gap distance

    Operating Temperature

    -35°C to +177°C (-31°F to +351°F)

    Cable Length

    Standard and custom lengths available

    System Accuracy

    ±0.0127 mm (±0.5 mils)

    Frequency Range

    0 to 10 kHz

    Power Supply Voltage

    -24 VDC

    Compliance

    API 670, CE, and RoHS

    Connector Type

    Radial or axial

    Material

    Probe: stainless steel; Cable: FEP insulated

    Environmental Protection

    IP67


    Frequently Asked Questions (FAQ):
    What is the primary application of the 330106 proximity probe?
    The 330106 proximity probe is primarily used for monitoring the vibration, shaft displacement, and position of rotating machinery, such as turbines, compressors, and pumps.

    What does the "XX" in the part number signify?
    The "XX" in the part number indicates the length of the probe and cable assembly. The lengths are customizable to suit specific installation requirements.

    Is this probe compatible with other Bently Nevada systems?
    Yes, the 330106 probe is fully compatible with Bently Nevada's proximity transducer systems, including the 3300 and 3500 series monitoring systems.

  • Service and Warranty

  • NOTE:

    1. The products quoted are brand new and original with a one-year warranty

    2. Prices are ex works, for shipping calculations, Please send to my Email

    3. Cooperation with the express delivery of DHL / Fedex / UPS / Aramex, etc,Delivery time is approximately '' 5 days ''  from our warehouse to the destination country

    4. Quotation validity: 30 days, if you need to extend, please reconfirm the price after 30 days.

    5. Payment Term: 100% advance payment by bank transfer.

    6. For the products '' in stock '' in the offer, our company can support video inspection
