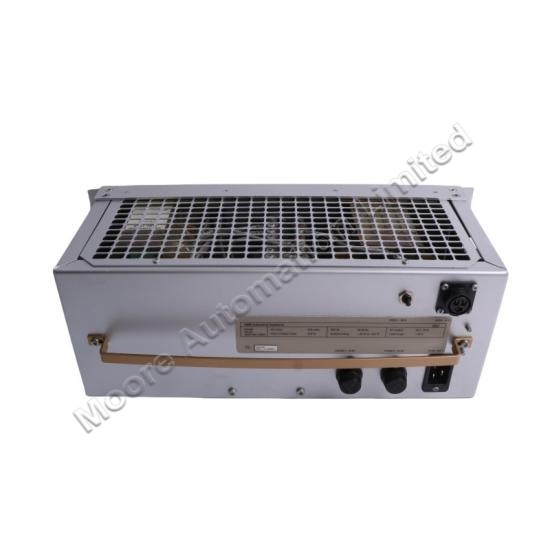

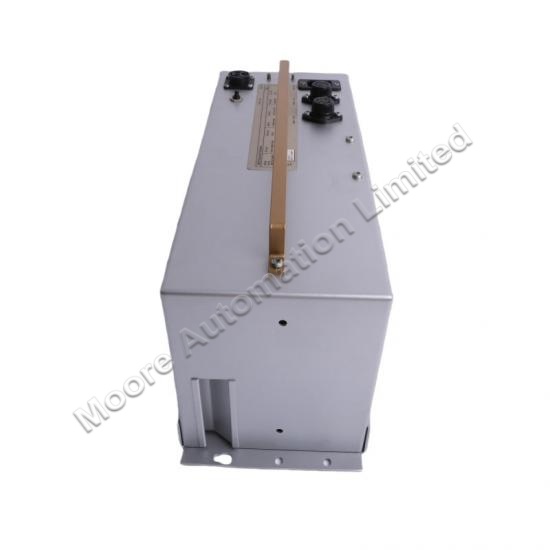

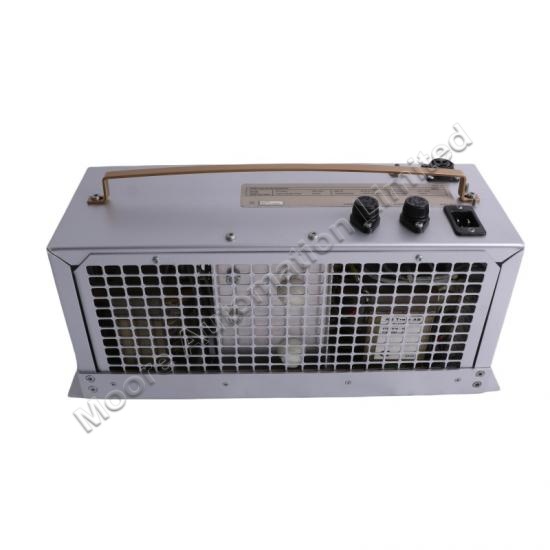

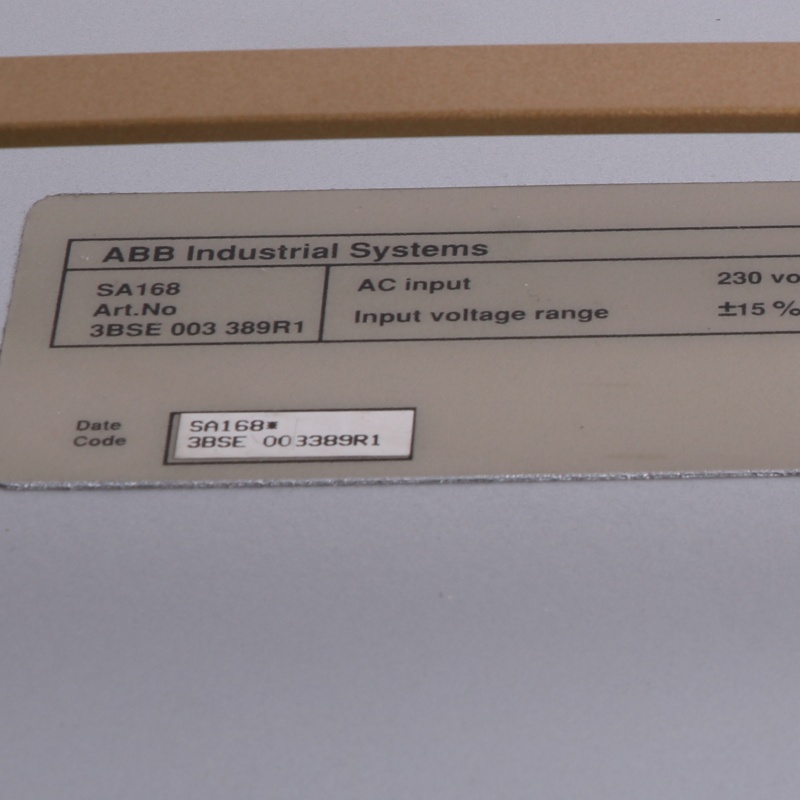

ABB SA168 3BSE003389R1 Power Supply Unit

What is the ABB PM554-RP Processor Module? The ABB PM554-RP 1SAP120700R0001 Processor Module is a compact and versatile component designed for industrial automation. Part of the AC500 series, this programmable logic controller (PLC) offers exceptional performance with a robust design tailored for demanding applications. Featuring user-friendly programming capabilities and reliable I/O terminals, the PM554-RP is a preferred choice for engineers and automation professionals worldwide. Key Specifications of the ABB PM554-RP Processor Module The ABB PM554-RP Processor Module boasts impressive technical specifications that make it stand out in the field of industrial automation. Below are the key highlights: Processor Module: Designed with 128 kB memory for efficient processing and operation. I/O Configuration: Features 8 digital inputs (DI) and 6 relay digital outputs (DO-R) for versatile connectivity. Voltage Support: Operates at a rated voltage of 24 V DC, with a supply voltage range of 20.4 to 28.8 V DC. Memory Type and Size: Equipped with 142 kB RAM, ensuring smooth handling of user data. Controller Speed: Exceptional processing time of 0.00008 ms, delivering fast and accurate responses. Pluggable I/O Terminal Blocks: Simplifies wiring and enhances usability during installation and maintenance. Dimensions and Weight of the ABB PM554-RP The compact and lightweight design of the ABB PM554-RP makes it suitable for space-constrained applications. Its dimensions and weight are as follows: Net Weight: 0.298 kg Net Depth / Length: 74 mm Net Height: 135 mm Net Width: 82 mm Gross Weight: 0.457 kg This compact design allows for easy integration into control cabinets and automation systems without occupying excessive space. Applications of the ABB PM554-RP Processor Module The ABB PM554-RP is a versatile processor module suited for a wide range of industrial automation applications, including: Manufacturing Systems: Ensures seamless operation of automated production lines. Building Automation: Controls HVAC systems, lighting, and other essential building functions. Energy Management: Helps optimize energy usage in industrial settings by managing equipment operation efficiently. Water and Wastewater Treatment: Plays a critical role in monitoring and controlling pumps, valves, and other components. With its flexibility and reliability, the PM554-RP is ideal for both small and large-scale automation projects. Benefits of Using the ABB PM554-RP The PM554-RP Processor Module offers several advantages that make it a valuable addition to any automation setup: High Performance: The ultra-fast processing time ensures smooth and efficient operations. User-Friendly Design: Pluggable I/O terminal blocks simplify wiring and maintenance. Compact Build: Space-saving dimensions allow for easy integration into existing systems. Reliable Power Range: Operates seamlessly within a wide voltage range, ensuring stability. Versatility: Suited for diverse applications across vario...

Introduction to the YOKOGAWA VI702 Vnet/IP Interface Card When it comes to industrial networking, the YOKOGAWA VI702 Vnet/IP Interface Card is a key solution for connecting your PC to the Vnet/IP network. This interface card offers seamless integration for real-time communication, ensuring efficient data exchange between systems. Designed to be installed in a PCI Express slot, the card bridges the gap between your computer and the Vnet/IP network, providing a reliable communication pathway for industrial automation systems Key Features and Specifications of the YOKOGAWA VI702 The VI702 Vnet/IP Interface Card supports high-speed communication, ensuring minimal latency in data transfer. Some key specifications to note include: Communication Speed: The interface card offers a full-duplex communication speed of 1 Gbps, allowing for rapid data transmission. Connection Specifications: The card uses CAT5e (Enhanced Category 5) cables with UTP (Unshielded Twisted Pair) wiring for efficient data transfer. The 1000BASE-T compliance ensures that the connection remains stable, even at high speeds. Connector and Max Distance: Equipped with an RJ45 connector, the card supports a maximum distance of 100 meters when connected to a Layer 2 switch. Installation Requirements for the VI702 Vnet/IP Interface Card To successfully install the YOKOGAWA VI702 card, ensure the following: PCI Express Slot Compatibility: The card is designed for use in PCI Express slots (x1 to x16), and is not compatible with traditional PCI slots. Power Requirements: The card requires a 3.3V power supply, with a maximum current consumption of 2.5A, so your system must be capable of providing adequate power. Technical Specifications of the YOKOGAWA VI702 Understanding the detailed specifications can help ensure compatibility and proper installation: Communication Speed: Full-duplex 1 Gbps communication ensures fast and reliable data transmission. Maximum Distance: The maximum allowable distance between the interface card and the Layer 2 switch is 100 meters, ensuring flexibility in your network design. Voltage and Power Consumption: The card operates on a 3.3 V ±9% power supply and consumes a maximum of 2.5 A of current. Application and Benefits in Industrial Networks The YOKOGAWA VI702 Vnet/IP Interface Card is particularly beneficial in industrial networks that require robust communication between devices. By installing this interface card, you can integrate your PC with a Vnet/IP network, enabling smooth data exchange between controllers, sensors, and other networked devices. This card provides a reliable solution for systems demanding low latency and high throughput, making it an essential component for industrial automation. Conclusion Incorporating the YOKOGAWA VI702 Vnet/IP Interface Card into your industrial network enhances connectivity and communication speed, ensuring that your systems operate efficiently and effectively. With its simple installation in PCI Express slots and robu...

Introduction to the Honeywell 51309276-150 High-Performance I/O Link Card In the realm of industrial automation and control systems, the Honeywell 51309276-150 High-Performance I/O Link Card plays a vital role in streamlining communication between various subsystems. This advanced I/O Link card is specifically designed for use within Honeywell’s High Performance Process Manager (HPM), making it an integral part of enhancing control and monitoring capabilities within complex process systems. Understanding its features, operation, and role within the larger HPM system is crucial for engineers and system operators aiming to maximize system performance and reliability. Key Components and Functionality of the High-Performance I/O Link Card The Honeywell 51309276-150 is not just a simple I/O module. It is a crucial interface between the High-Performance Process Manager and its I/O subsystem, ensuring seamless data flow and communication. The card integrates several essential components that facilitate this functionality: I/O Link Processor: This is the heart of the I/O Link card, handling all communication tasks between the HPM and I/O subsystems. SRAM Memory: The processor uses SRAM to exchange data with the Communications/Control card, providing the necessary buffer for real-time operations. I/O Link Driver/Receiver Interface: This component enables the physical communication between the I/O subsystem and the HPM, ensuring reliable data transmission. Power Converter: A critical feature, the power converter steps down the 24 Vdc input power to 5 Vdc, which is required for the operation of the HPMM cards and the HPM UCN Interface module. The card is designed to support redundant connections and can interface with up to 40 I/O processors (IOPs), ensuring high availability and fault tolerance in critical process environments. Installation and Integration of the High-Performance I/O Link Card The integration of the 51309276-150 I/O Link Card into the High-Performance Process Manager (HPM) is straightforward but requires precision. It is part of a set of HPMM cards that occupy the first two slot positions in a 7-slot or 15-slot card file. These slots are populated as follows: High-Performance Communications/Control Card (51403988-150) High-Performance I/O Link Card (51309276-150) HPM UCN Interface Module (51402573-150) The I/O Link card is positioned to communicate directly with the I/O subsystem and serves as the bridge for data exchange, ensuring optimal operation of the entire HPM system. The card setup and assembly should be done carefully to ensure that each component is installed into the correct slot for maximum efficiency. Indicators and Diagnostics for the High-Performance I/O Link Card Understanding the indicators on the I/O Link card is essential for troubleshooting and maintaining system performance. Several key indicators provide real-time feedback on the system’s status: Power Indicator: The power indicator light up whenever 24 Vdc power is s...

Introduction to the GE Fanuc IC200CPUE05 The GE Fanuc IC200CPUE05 VersaMax controller module is a versatile and powerful solution tailored for modern industrial automation needs. Equipped with advanced features such as configurable user memory, embedded communication ports, and high-speed processing, this module seamlessly integrates into diverse systems, delivering exceptional reliability and efficiency. Whether it's small-scale setups or extensive operations, the IC200CPUE05 offers unmatched performance and flexibility. Key Features of the GE Fanuc IC200CPUE05 The IC200CPUE05 VersaMax controller module is designed to meet the most demanding industrial requirements with the following standout features: Configurable User Memory: Offers 64 KB of memory for custom applications, ensuring adaptability across various operations. Embedded Communication Ports: Includes three communication ports—RS-232, RS-485, and Ethernet—for seamless device connectivity and data exchange. Super Capacitor for Memory Backup: Retains critical data during power outages for up to an hour. Floating Point Data Processing: Facilitates complex calculations, making the module ideal for intricate applications. Run/Stop Switch and Status LEDs: Simplifies operations and monitoring with user-friendly controls and visual status indicators. Technical Specifications The IC200CPUE05 is engineered for peak performance, with technical specifications that set it apart in the market: Dimensions: Compact size of 126 x 128 x 69.1 mm (W x H x D). Power Requirements: Operates on 5V at 220mA and 3.3V at 570mA. Boolean Execution Speed: Processes Boolean logic at a rapid 0.8 ms/K. Real-Time Clock Accuracy: Ensures precise timekeeping with an accuracy of 100 ppm (±9 seconds/day). Ethernet Data Rate: Delivers data at 10 Mbps with full- or half-duplex modes. EGD Configuration: Supports up to 32 Ethernet Global Data (EGD) exchanges with 1400 bytes per exchange. Communication Capabilities The IC200CPUE05 excels in its communication features, providing seamless integration into distributed systems: SRTP Server Connections: Manages up to 8 simultaneous connections for smooth system operation. Time Synchronization: Utilizes Network Time Protocol (NTP) for accurate system-wide timekeeping. EGD Configuration: Enables easy loading of EGD settings from the PLC to the programmer. Remote and Local Management: Allows remote station management over UDP and local control via RS-232. Applications of the GE Fanuc IC200CPUE05 The IC200CPUE05 VersaMax controller module is a versatile solution for a variety of industrial automation needs: Factory Automation: Ideal for systems that require rapid Boolean logic execution. Distributed Control Systems: Supports extensive I/O modules, making it perfect for large-scale operations. Complex Applications: Suitable for environments needing precise time synchronization and floating-point data processing. Conclusion The GE Fanuc IC200CPUE05 VersaMax controller module is a game-cha...

Boosting Productivity and Quality Automation has become a game-changer for industries worldwide, offering unparalleled advantages. Among its most significant benefits is the ability to increase production rates and enhance overall productivity. Automated systems execute manufacturing processes with remarkable consistency and reduced variability, leading to higher product quality. Unlike human workers, who may have variations in output, automated systems ensure strict process control. This not only reduces material waste but also optimizes resource utilization, making operations more efficient. Enhancing Workplace Safety Worker safety is another critical advantage of automation. By minimizing human involvement in hazardous environments, automation significantly reduces the risks associated with factory operations. For instance, initiatives like the Occupational Safety and Health Act (OSHA) of 1970 in the United States have underscored the importance of workplace safety. This has led many industries to adopt automated systems to protect employees from physical harm, creating safer working conditions and reducing workplace accidents. Reducing Work Hours and Lead Times Automation has also contributed to a reduction in the average workweek. Over the past century, automation has played a pivotal role in decreasing the workweek from 70 hours in the early 1900s to about 40 hours today in many countries. Furthermore, businesses benefit from shortened factory lead times due to automation. This allows companies to respond more effectively to customer demands, improving overall operational efficiency and customer satisfaction. Challenges in Adopting Automation Worker Displacement While automation offers numerous benefits, it also presents challenges, particularly worker displacement. As machines replace human labor in various industries, affected workers may experience emotional stress and the need for retraining. In some cases, geographic relocation becomes necessary, adding further strain on employees and their families. High Implementation Costs The cost of implementing automation is another significant challenge. Designing, fabricating, and installing automated systems often require substantial financial investment. These systems also demand higher levels of maintenance compared to manual operations, which can be both time-consuming and expensive for businesses. Limited Flexibility Automation systems, though highly efficient, lack the adaptability of human workers. While flexible automation exists, it cannot match the versatility of humans when it comes to producing diverse or custom products. This limitation can be a drawback for businesses that require high levels of customization. Risks Associated with Automation Dependency on Machines Automation, if not managed responsibly, can lead to over-dependence on machines. This could result in a loss of autonomy and control for workers, raising concerns about the long-term impact on human skills and decision-...

Introduction: Navigating the World of Industrial Control Systems In the world of industrial automation, selecting the right control system for your project can be a challenging decision. With various options like Programmable Logic Controllers (PLCs), Programmable Automation Controllers (PACs), and Industrial PCs (IPCs), it's crucial to understand each system’s functionality and benefits to ensure you make the right choice. This guide explores the history, features, and benefits of each system, helping you make an informed decision based on your specific automation needs. A Look Back: The History and Evolution of PLCs PLCs revolutionized industrial automation in the late 1960s, primarily in automotive manufacturing, before quickly expanding to other industries like food processing, electronics, and pharmaceuticals. Before PLCs, manufacturers relied on cumbersome hardware-based relay racks. These systems were power-hungry, expensive, and inflexible. When changes to the production process were required, engineers had to manually rewire thousands of relays, which was time-consuming and inefficient. The introduction of the Modular Digital Controller (Modicon), the first PLC, replaced these manual processes with programmable software. This not only streamlined production but also made it easier for engineers to adapt to changes. Over the years, PLCs have evolved to become smaller, faster, and more powerful, solidifying their place in smaller-scale automation projects. PLCs vs. PACs vs. IPCs: What’s the Difference? Although PLCs remain a fundamental component of industrial automation, PACs and IPCs have expanded the possibilities for control systems in more complex applications. PLCs: These controllers are known for their rugged reliability and are ideal for smaller, less complex tasks. However, they may require additional modules or hybrid systems for more advanced functions like motion control. IPCs: Emerging in the 1990s, IPCs allow users to run PLC-style applications on standard PC operating systems. Initially, IPCs struggled in industrial environments, but today’s versions are reliable and well-suited for large-scale operations. PACs: PACs combine the best of both PLCs and IPCs. With multiple microcontrollers and sophisticated control logic, PACs excel in managing complex automation processes, from motion control to process management, and they can be integrated with SCADA systems. The Advantages of PACs: Why They’re Taking Over Industrial Automation PACs offer several advantages over traditional PLCs and IPCs, making them a top choice for many manufacturing plants: Multifunctionality: PACs integrate the capabilities of both PLCs and IPCs into a single platform, eliminating the need for hybrid systems. Scalability: One PAC can replace multiple PLCs, simplifying operations and reducing the number of devices required. Advanced Control Capabilities: PACs handle complex motion and process control tasks more effectively than PLCs and IPCs, offering sup...

The Foundations of PLCs in Industrial Automation Since their inception in the 1960s, Programmable Logic Controllers (PLCs) have revolutionized industrial automation. Designed to replace manual relay systems, PLCs were first utilized in automotive manufacturing but quickly found their way into industries like food and beverage, pharmaceuticals, and electronics. The primary advantage of PLCs lies in their simplicity and reliability. Early PLCs, like the Modicon Modular Digital Controller, introduced ladder logic programming, a user-friendly system that enabled engineers to program and reprogram systems without complex rewiring. Today, PLCs are more compact, efficient, and cost-effective, making them an indispensable tool for small-scale automation tasks. Comparing PLCs, PACs, and IPCs While PLCs are foundational in automation, Programmable Automation Controllers (PACs) and Industrial PCs (IPCs) bring additional capabilities to meet the demands of more complex operations. PLCs Strengths: Durable, reliable, and well-suited for straightforward automation tasks. Limitations: Limited processing power for complex logic or motion control, often requiring add-ons. IPCs Strengths: PC-based systems with robust processing power, perfect for large-scale operations. Limitations: Less durable in harsh environments without industrial-grade adaptations. PACs Strengths: Combines PLC reliability with IPC computing power. Ideal for multi-faceted automation, offering enhanced scalability and seamless integration with SCADA systems. Limitations: Higher initial costs compared to PLCs. Why PACs Lead Modern Automation PACs are increasingly favored due to their multifunctionality, scalability, and advanced control capabilities. They can handle tasks that traditionally require multiple PLCs, simplifying operations and reducing costs. Their precision in managing complex processes, such as motion and discrete control, makes them the preferred choice for industries requiring efficiency and adaptability. Additionally, PACs’ ability to integrate data visualization and analysis tools positions them as the centerpiece of Industry 4.0 strategies. Choosing the Right Control System Your choice between PLCs, PACs, and IPCs depends on the scope and complexity of your automation needs: Small-scale tasks: PLCs are reliable, affordable, and perfect for straightforward operations. Complex processes: PACs shine with their advanced functionality and scalability. PC-based solutions: IPCs are ideal for data-intensive or large-scale applications. Hybrid setups: Combining PLCs and IPCs offers a flexible solution for versatile projects. By carefully assessing your project’s requirements and long-term goals, you can ensure that your control system aligns with your operational needs and future growth. Conclusion PLCs, PACs, and IPCs each play a crucial role in industrial automation, with unique strengths tailored to different applications. For small, straightforward tasks, PLCs offer unmatched reli...

Understanding the Industrial Automation Revolution The industrial automation market is undergoing rapid transformation, with its value projected to reach an impressive $265 billion by 2025. This remarkable growth is driven by the integration of cutting-edge technologies like robotic arms across various industries, including automotive, pharmaceuticals, electronics, and food and beverage. These advancements have revolutionized manufacturing processes, enabling faster, more efficient, and highly accurate operations. The rise of the Industrial Internet of Things (IIoT) has further accelerated this revolution, offering real-time, data-driven insights and paving the way for AI-powered, self-correcting machinery. The Benefits of Embracing Automation The adoption of automation offers numerous advantages to industries aiming for higher efficiency and productivity. Thanks to advancements in technologies like sensors, pneumatics, machine vision, and complex mechanics, automated systems are now more reliable, affordable, and faster than ever before. Additionally, the IIoT has enabled seamless integration of wireless communication, cloud-based platforms, and big data analytics. This combination allows manufacturers to gain real-time insights based on historical trends and patterns, ensuring informed decision-making and optimized performance. By leveraging automation, businesses can enhance operational accuracy, reduce costs, and improve overall productivity. The Intersection of Robotics and Automation Robotics and automation have become indispensable components of modern manufacturing. Today, robotic subsystems boast enhanced capabilities, such as improved accuracy, payload capacity, flexibility, and reach. These improvements have expanded their application to various manufacturing tasks, including picking and placing, assembly, welding, painting, and testing. In the automotive sector, for example, powerful robotic arms perform demanding tasks like deburring and polishing engine blocks, which require a combination of force, precision, and speed. Similarly, collaborative robots (cobots) have emerged to work alongside humans, handling repetitive tasks like installing car seats or attaching windscreen wipers and door handles. These advancements demonstrate how robotics and automation are reshaping the manufacturing floor, ensuring efficiency and precision. Overcoming the Complexity of Automation Projects While automation and robotics offer significant benefits, their successful implementation can be complex. Companies must navigate numerous challenges throughout the project lifecycle, including preparation, implementation, operation, and maintenance. Achieving desired outcomes requires robust decision-making, skilled expertise, and effective communication among various stakeholders. Common challenges include selecting the right products, coordinating between engineering and IT teams, managing deployment timelines, and ensuring thorough integration and testing. ...
