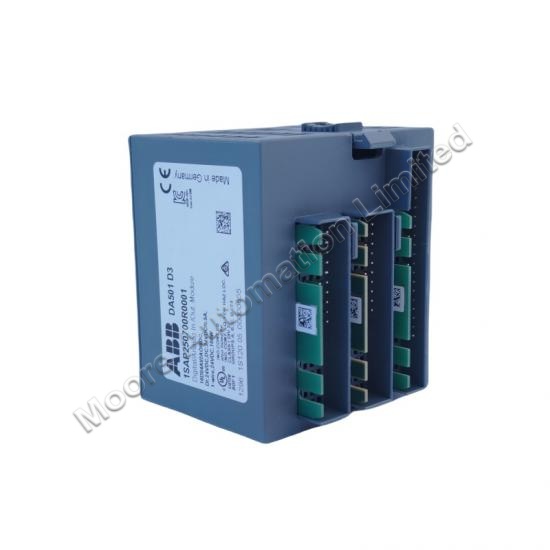

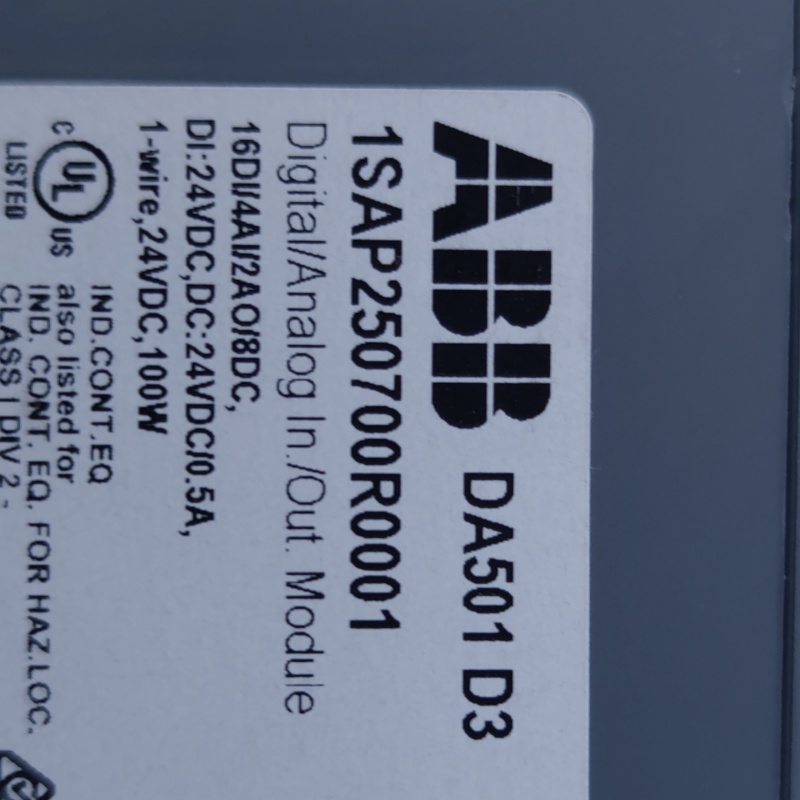

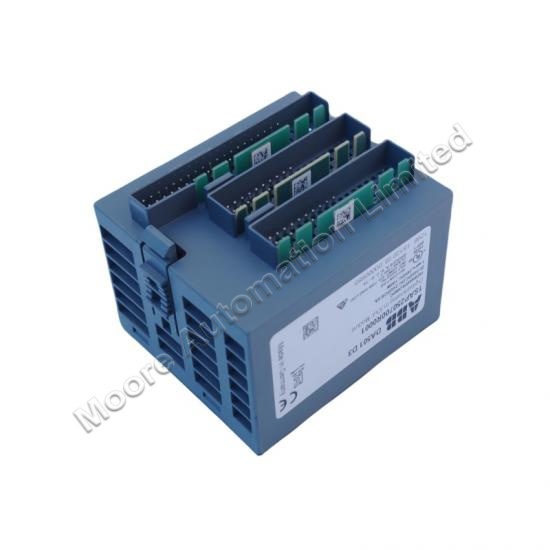

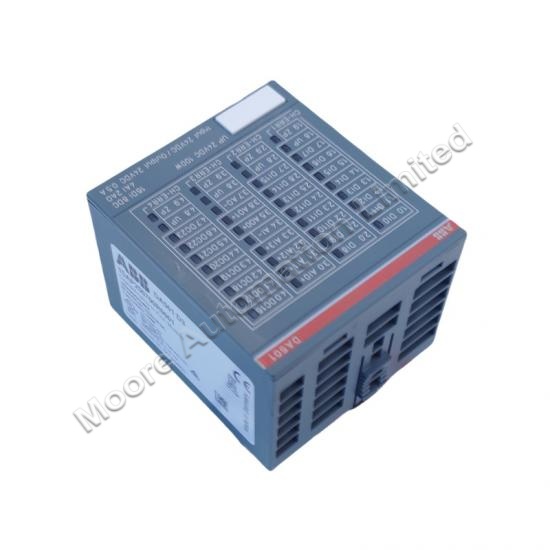

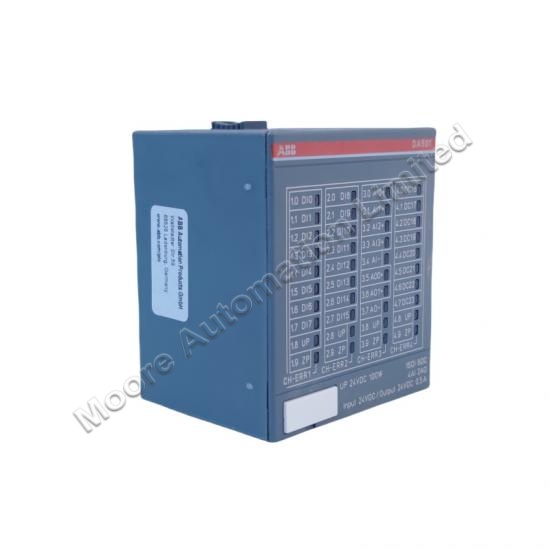

The ABB DA501 1SAP250700R0001 I/O module is part of the S500 series designed for digital and analog input/output operations in industrial automation environments. |
Picture/Video
Get Products pictures or Video for Inspection
Specification |
Product Image |
|
Brand Name |
ABB |
|
Model Number |
DA501 |
|
Alternate Part Number |
1SAP250700R0001 |
|
Condition |
100% Original |
|
Quality |
Brand New |
|
Dimensions |
6.7x6.2x7.5cm |
|
Description |
I/O module |
|
Package |
Original Package |
|
Lead time |
In Stock |
|
Shipping term |
UPS DHL TNT EMS Fedex |
|
Payment |
T/T (Bank Transfer) |
|
Service |
One-Stop Service |
|
Weight |
0.12kg |
|
Warranty |
12 Months |
Product Description:
The ABB DA501 1SAP250700R0001 I/O module is part of the S500 series designed for digital and analog input/output operations in industrial automation environments. This module features 16 digital inputs (DI) operating at 24V DC, 4 analog inputs (AI) capable of measuring voltage (U), current (I), and resistance temperature detectors (RTD), and 2 analog outputs (AO) for voltage and current control. Additionally, it includes 8 configurable digital inputs/outputs (DI/DO) that can handle 24V DC with a maximum output current of 0.5A. The DA501 module is engineered for flexibility and reliability, making it suitable for various applications in control systems.
Property
Details
Technical Function
16 DI: 24VDC, 4 AI: U, I, RTD, 2 AO: U, I, 8 configurable DI/DO: 24VDC 0.5A
Number of Analog Inputs
4
Analog Input Signal Types
U, I, RTD, DI
Number of Analog Outputs
2
Analog Output Signal Types
U, I
Analog Input Resolution
13 bit
Analog Output Resolution
13 bit
Number of Digital Inputs
16
Number of Digital Configurable I/Os
8
Input Voltage Type
DC
Input Voltage (Uin)
24 V DC
Input Current
5 mA
Maximum Input Voltage
30 V
Delay Time (τ)
0.1 … 32 ms
Output Type
Transistor
Output Voltage Type
DC
Output Voltage (Uout)
24 V DC
Output Current
0.5 A
Degree of Protection
Housing IP20
Rated Voltage (Ur)
24 V DC
Supply Voltage
Rated: 24 V DC, Range: 20.4 … 28.8 V DC
Ambient Air Temperature
Operation: 0 ... +60 °C, Storage: -40 ... +70 °C
Delay Time (τ)
0.1 … 32 ms
Frequently Asked Questions:
What types of signals can the DA501 module process?
The DA501 can process digital inputs, voltage (U), current (I), and RTD signals for analog inputs. It can also output voltage and current signals.
How many digital inputs and outputs does the DA501 support?
The DA501 supports 16 digital inputs and 8 configurable digital inputs/outputs.
What is the maximum input voltage for this module?
The maximum input voltage for the DA501 is 30 V DC.
What is the degree of protection for the DA501 module?
The DA501 module has a housing protection rating of IP20.
