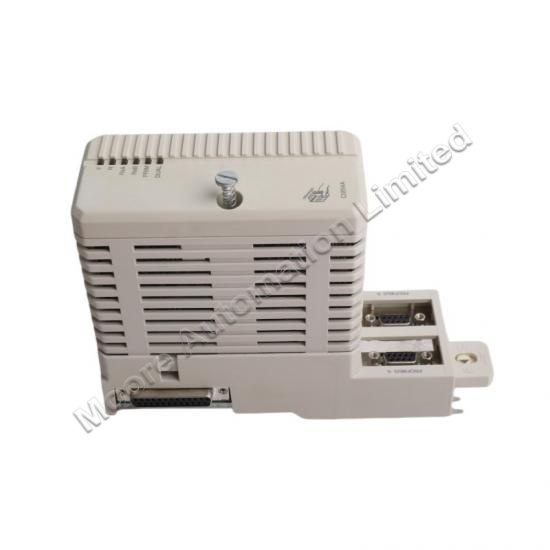

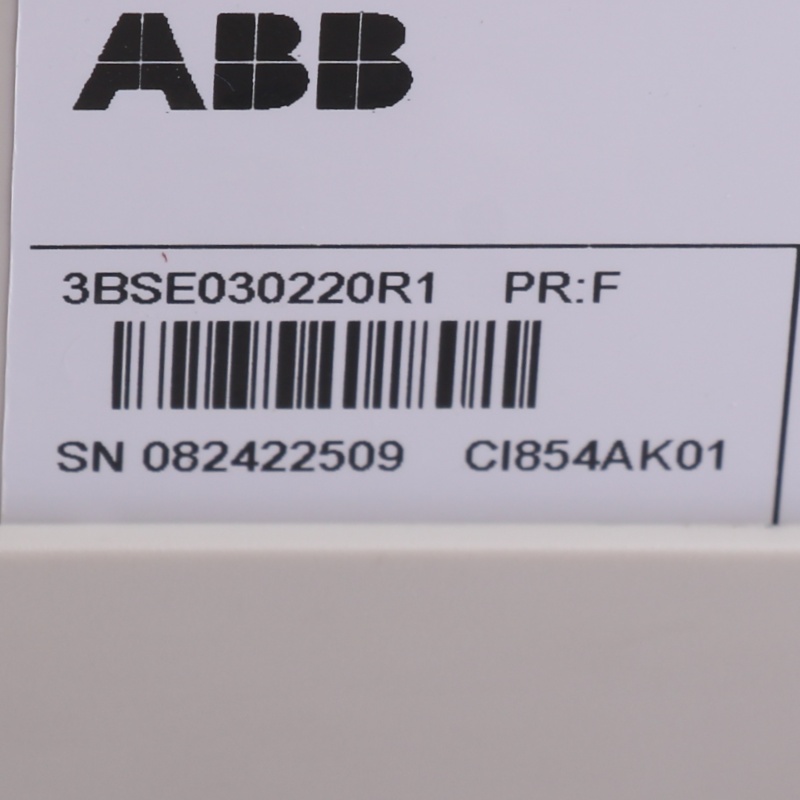

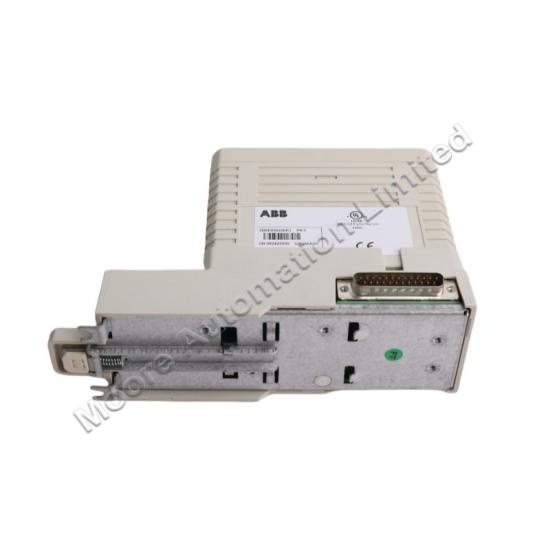

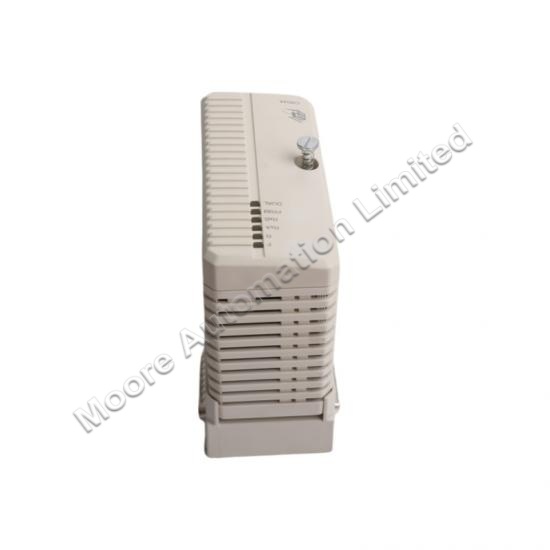

ABB CI854AK01 3BSE030220R1 Communication Interface

Introduction to the GE DS200TCCAG1BAA I/O TC2000 Analog Board The GE DS200TCCAG1BAA is a critical component of the TC2000 I/O Analog Board, designed to function seamlessly within the Mark V Series assembly. This printed circuit board (PCB) is engineered to support a variety of hardware components and specifications, making it a versatile and reliable choice for industrial automation systems. Whether you're a technician, engineer, or simply someone interested in industrial hardware, understanding the features and functionality of this board can provide valuable insights into its role in modern automation. Key Features of the DS200TCCAG1BAA Board The DS200TCCAG1BAA board boasts several notable features that enhance its performance and usability. At its core is an 80196 microprocessor, which serves as the brain of the board, processing instructions and managing operations. Additionally, the board includes multiple programmable read-only memory (PROM) modules, which store essential firmware and instructions for the microprocessor and programmable logic device. These PROMs can be erased and reprogrammed, allowing for updates and customization as needed. The board also features one LED, visible from the side, which provides status indications for easy monitoring. Furthermore, it includes two 50-pin connectors, labeled JCC and JDD, which facilitate communication and data transfer within the system. These connectors are designed to work with specific Mark V Series products and transmit designated signals, ensuring compatibility and efficiency. The Role of PROM Modules in the DS200TCCAG1BAA Board The programmable read-only memory (PROM) modules on the DS200TCCAG1BAA board play a crucial role in its operation. These modules store firmware and instructions that guide the microprocessor and programmable logic device. The ability to erase and reprogram the PROMs makes the board adaptable to changing requirements and technological advancements. This flexibility is particularly valuable in industrial settings, where systems often need to be updated or reconfigured to meet new demands. Connectors and Their Functions The DS200TCCAG1BAA board is equipped with two 50-pin connectors, JCC and JDD, each serving a specific purpose. These connectors are named based on their factory-printed labels, compatibility with Mark V Series products, and the signals they transmit. Their design ensures seamless integration with other components in the Mark V Series assembly, enabling efficient data transfer and communication. It’s worth noting that the board also includes a JEE connector, which is considered a vestigial structure. This connector is not intended for use during normal operation and remains unaccessed in the board's standard functionality. Its presence is a remnant of earlier designs, highlighting the board's evolution over time. Applications of the DS200TCCAG1BAA Board in Industrial Automation The GE DS200TCCAG1BAA I/O TC2000 Analog Board is widely used in industrial...

What is the GE IC695ACC402PACSystems RX3i Energy Pack? The GE IC695ACC402 PACSystems RX3i Energy Pack is a specialized component designed to work exclusively with the CPE330 RX3i CPU. Its primary function is to safeguard user memory within the controller during power fluctuations or outages. By ensuring that critical data is preserved, the Energy Pack plays a crucial role in maintaining system integrity and preventing data loss in industrial automation environments. How Does the Energy Pack Work? When system power is lost, the Energy Pack steps in to provide temporary power to the CPE330 CPU. This allows the CPU to write its user memory contents to non-volatile memory, ensuring that no data is lost during the outage. Once system power is restored, the user memory is automatically reloaded if the CPE330 is configured to power up from RAM. This seamless transition minimizes downtime and ensures continuous operation of your system. Key Features of the ACC402 Energy Pack Dedicated Connection: The Energy Pack connects to the IC695CPE330 CPU via a specialized cable (IC695CBL002), which facilitates both power sourcing and status monitoring. Automatic Power Switching: In the event of a power loss, the CPU automatically switches to the Energy Pack as its power source, ensuring an orderly shutdown process. Backplane Power Utilization: The Energy Pack charges its circuitry using power from the RX3i backplane, making it an efficient and integrated solution. Applications of the ACC402 Energy Pack The GE IC695ACC402 Energy Pack is ideal for industrial environments where power stability is a concern. It is commonly used in manufacturing plants, energy systems, and other critical infrastructure where even a brief power interruption can lead to significant operational disruptions. By preserving user memory and ensuring a smooth recovery process, the Energy Pack helps maintain productivity and system reliability. Why Choose the ACC402 Energy Pack? Reliability: Designed specifically for the CPE330 CPU, the Energy Pack offers a dependable solution for power-related challenges. Ease of Integration: The dedicated cable and automatic switching features make it easy to incorporate into existing systems. Data Protection: By safeguarding user memory, the Energy Pack ensures that critical data is never lost, even during unexpected power outages. Conclusion The GE IC695ACC402 PACSystems RX3i Energy Pack is an essential component for any system utilizing the CPE330 CPU. Its ability to preserve user memory during power fluctuations or outages ensures uninterrupted operation and data integrity. Whether you're managing a manufacturing plant or an energy system, the ACC402 Energy Pack provides the reliability and peace of mind you need to keep your operations running smoothly. Invest in this innovative solution to protect your system and enhance its performance.

What is the Honeywell FE-USI-0002 V1.0 Universal Safety Interface Module? The Honeywell FE-USI-0002 V1.0 Universal Safety Interface (USI) Module is a cutting-edge communication module designed to facilitate seamless integration between external devices and Honeywell’s safety and control systems. This module is a critical component in industrial automation, enabling Ethernet and Serial communication with systems like Experion™ PKS and Safety Builder. It is housed within the Controller chassis and serves as a robust hardware firewall, safeguarding the safety functions of Safety Manager. The FE-USI-0002 is engineered to handle multiple demanding communication protocols simultaneously, thanks to its enhanced protective capabilities and high internal memory. Whether you’re managing complex safety systems or integrating external devices, this module ensures reliability, security, and efficiency. Key Features of the FE-USI-0002 V1.0 Module The Honeywell FE-USI-0002 V1.0 Universal Safety Interface Module is packed with advanced features that make it a standout choice for industrial applications. Here are some of its key features: Dual Communication Capabilities: Supports both Ethernet and Serial communication, making it versatile for various industrial environments Hardware Firewall: Acts as a protective barrier, ensuring the safety functions within Safety Manager remain secure from external threats. High Internal Memory: Equipped with 8 MB Flash memory and 8 MB Local SRAM, allowing it to run multiple communication protocols in parallel without compromising performance. Error Detection and Correction: The Local SRAM includes Error Detecting and Correcting (EDC) logic, ensuring data integrity and system reliability. Dual-Speed Ethernet Transceivers: Features two dual-speed fast Ethernet transceivers for high-speed data transfer. General-Purpose Serial Channels: Includes two general-purpose serial communication controller channels for flexible connectivity. Technical Specifications and Components The FE-USI-0002 V1.0 module is built with state-of-the-art components to deliver optimal performance. Here’s a breakdown of its technical specifications and internal components: Processor: Powered by a Motorola 8270 communication processor, ensuring efficient data handling and processing. Memory: EEPROM: Stores module-specific data, such as MAC addresses and hardware revision numbers. 8 MB Flash Memory: Stores the system and application programs. The flash content is copied to SRAM during startup and executed from there. It can be updated without removing the module from the chassis. 8 MB Local SRAM: Used for system and application programs, featuring Error Detecting and Correcting (EDC) logic for enhanced reliability. 256 KB Shared RAM: Facilitates data exchange between the USI-0002 module and the Control Processor. Communication Interfaces: Two dual-speed fast Ethernet transceivers for high-speed connectivity. Two general-purpose serial communication controller ...

Introduction to the Triconex MP3101 Trident Redundant Processor Module The Triconex MP3101 Trident Redundant Processor Module is a high-performance, reliable, and robust processor module designed for critical industrial applications. Manufactured by Triconex, a trusted name in safety and control systems, the MP3101 is engineered to deliver exceptional processing power and redundancy, ensuring uninterrupted operation in demanding environments. This module is widely used in industries such as oil and gas, power generation, and chemical processing, where system reliability and safety are paramount. Key Features of the MP3101 Processor Module The Triconex MP3101 boasts an impressive array of features that make it a standout choice for industrial control systems. At its core, the module is powered by dual Motorola MPC860 processors, each running at 32-bit and 50 MHz. This dual-processor design ensures redundancy and fault tolerance, critical for maintaining system integrity. The module includes 6 MB of Flash PROM for storage of SX, 10X, and control applications, protected by CRC for data integrity. It also features 16 MB of DRAM for SX control application execution and program storage, along with 8 KB of NVRAM for retentive variables. Additionally, the MP3101 is equipped with 16 MB of DRAM for 10X execution and 128 KB of shared memory for seamless communication between processors. Technical Specifications and Performance The Triconex MP3101 is designed to operate efficiently under a wide range of conditions. It supports a nominal input voltage of 24V DC, with an operational voltage range of 19.2V to 30V DC, including a 5% AC ripple tolerance. This flexibility ensures stable performance even in environments with fluctuating power supplies. The module has a maximum logic power consumption of 8 W, making it energy-efficient while delivering high processing power. It can withstand an absolute maximum input voltage of 33V DC and a reverse input voltage of -0.6V DC, ensuring durability and protection against electrical anomalies. Applications of the MP3101 in Industrial Settings The Triconex MP3101 is ideally suited for applications where system reliability and safety are non-negotiable. Its redundant processor design and robust memory architecture make it a perfect fit for: Safety Instrumented Systems (SIS): Ensuring fail-safe operation in critical processes. Process Control Systems: Managing complex industrial processes with precision. Emergency Shutdown Systems (ESD): Providing rapid and reliable shutdown capabilities in emergencies. Fire and Gas Detection Systems: Monitoring and responding to hazardous conditions in real-time. Conclusion The Triconex MP3101 Trident Redundant Processor Module is a powerful, reliable, and versatile solution for industrial control and safety systems. Its advanced features, robust design, and exceptional performance make it an ideal choice for industries that demand the highest levels of reliability and safety. Whether you’...
